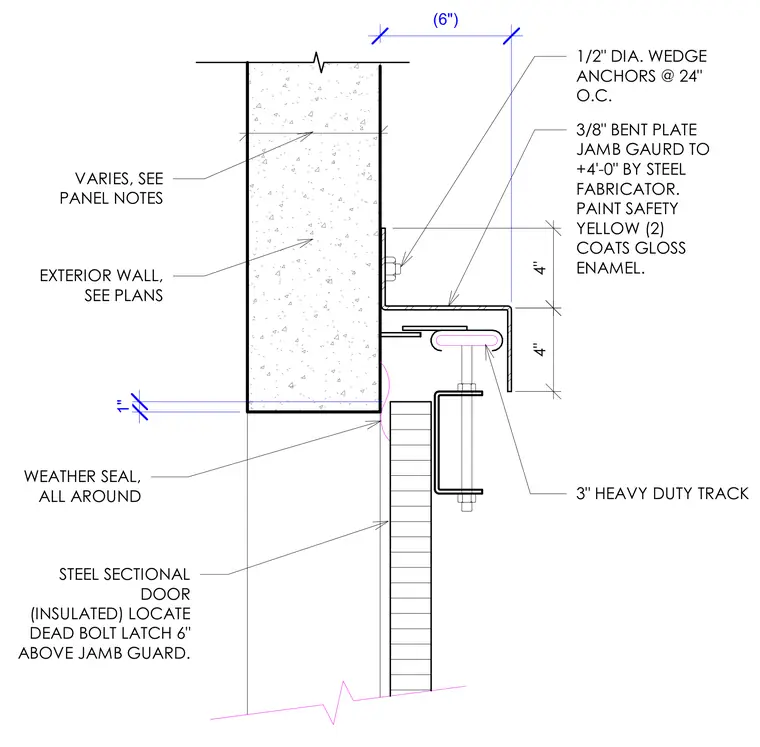

An insulated steel sectional door track mounts adjacent to an exterior wall with a three-eighths inch bent plate jamb guard extending to plus four feet zero inches. The jamb guard is secured to the wall using one-half inch diameter wedge anchors at twenty-four inches on center and finished with two coats of safety yellow gloss enamel paint. A weather seal runs all around the perimeter where the assembly meets the exterior wall. A dead bolt latch is located six inches above the top of the jamb guard.
VARIES, SEE PANEL NOTES 4" 4" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GAURD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND 1" EXTERIOR WALL, SEE PLANS (6")
