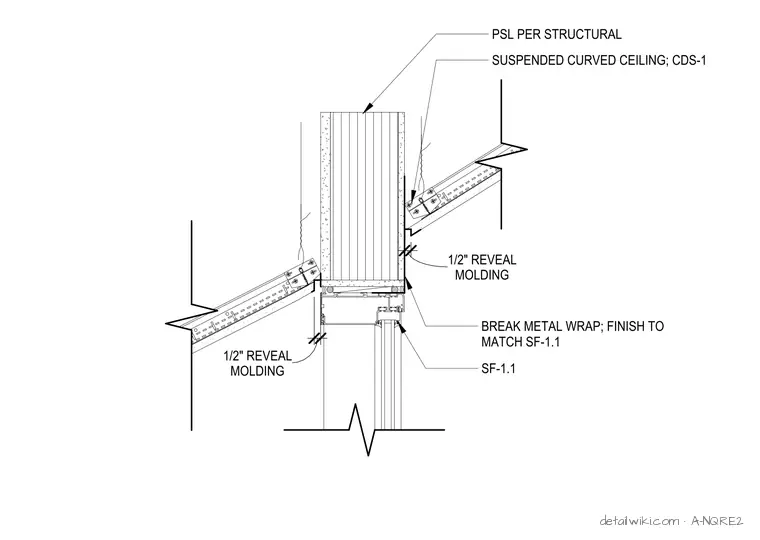

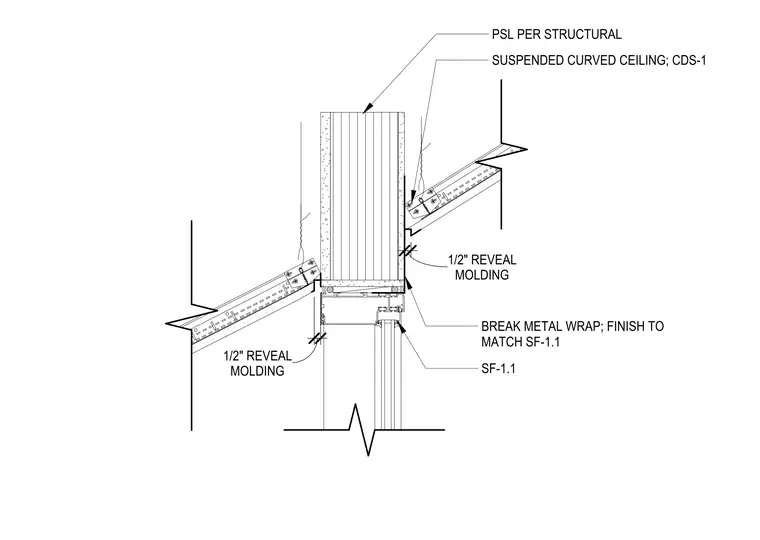

Storefront head SF-1.1 features a break metal wrap matching the storefront frame. A 1/2-inch reveal molding sits at the junction between the storefront head and suspended curved ceiling CDS-1. Parallel strand lumber (PSL) sized per structural drawings supports the ceiling assembly, which is suspended using wire hangers. The assembly provides a transition between the vertical storefront glazing system and the adjacent curved ceiling plane.
