Architectural · A-NQR3S

Accessible Sink Base Cabinet with Retractable Doors

Elements

Partitions Doors Floors / Slabs Millwork / Casework

About this detail

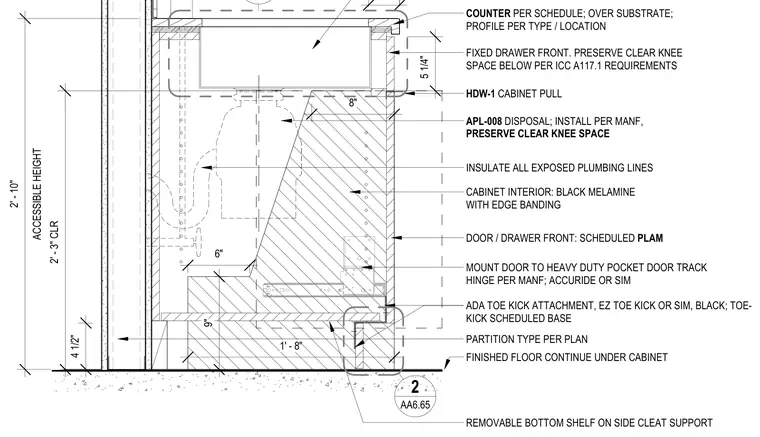

An accessible base cabinet with a sink and retractable doors is mounted against a partition per plan, maintaining a finished floor extending underneath. The cabinet features a counter per schedule over a substrate, a fixed upper drawer front, and a lower door mounted to a heavy-duty pocket door track and hinge system using HDW-1 cabinet pulls. The interior is finished with black melamine and edge banding, featuring a removable bottom shelf supported by side cleats and a sink disposal unit that preserves clear knee space below in compliance with ICC A117.1 requirements, complete with insulation on all exposed plumbing lines. A black ADA toe kick attachment is installed at the base, coordinated with the scheduled casework finishes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
