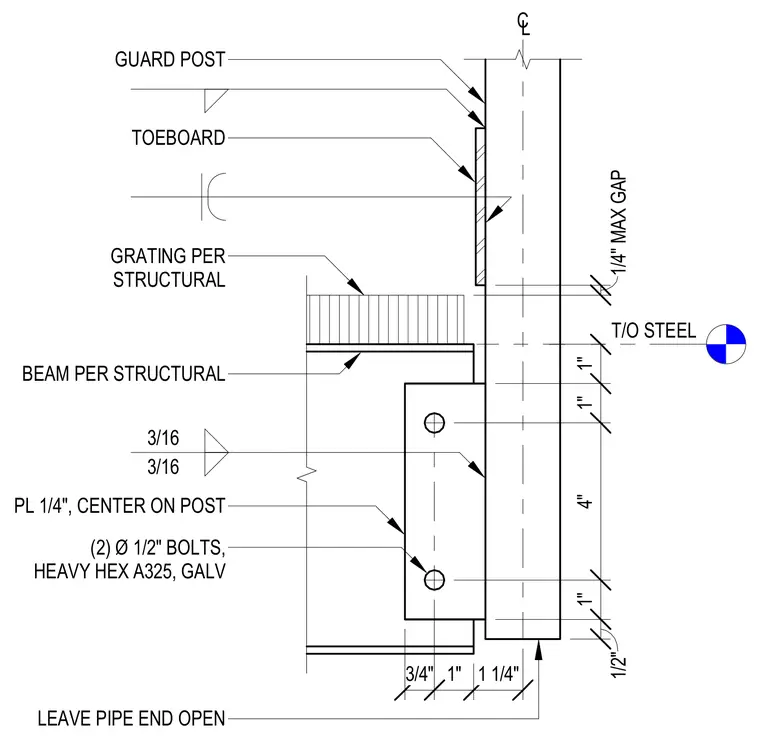

A vertical guard post extends down past the structural beam edge, with its lower end left open. A quarter-inch steel plate is centered on the post and welded with three-sixteenth-inch fillet welds. Two one-half-inch diameter heavy hex A325 galvanized bolts connect the assembly. A toe board is positioned on the guard post above the grating, maintaining a quarter-inch maximum gap. Metal grating and the supporting beam are installed per structural drawings.
T/O STEEL GUARD POST C L 1" 1" 4" 1" 1/2" 3/4" 1" 1 1/4" (2) Ø 1/2" BOLTS, HEAVY HEX A325, GALV PL 1/4", CENTER ON POST GRATING PER STRUCTURAL 3/16 3/16 BEAM PER STRUCTURAL LEAVE PIPE END OPEN TOEBOARD 1/4" MAX GAP
