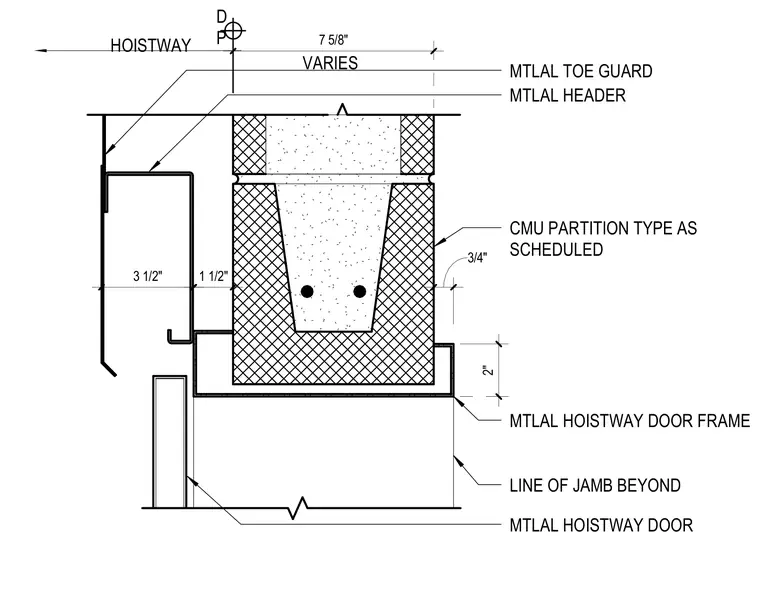

The head condition for an elevator hoistway door opening adjacent to a concrete masonry unit partition. A metal hoistway door frame anchors against the CMU wall, which is detailed per the partition schedule. A metal header and metal toe guard are positioned above the door frame within the hoistway zone. Dimensions indicate specific clearances including three and a half inches and seven and five-eighths inches.
D P HOISTWAY MTLAL TOE GUARD MTLAL HEADER CMU PARTITION TYPE AS SCHEDULED MTLAL HOISTWAY DOOR FRAME LINE OF JAMB BEYOND MTLAL HOISTWAY DOOR 2" 3 1/2" 7 5/8" VARIES 3/4" 1 1/2"
