Architectural · A-NQAVB

Workstation Mount

Elements

Connections

About this detail

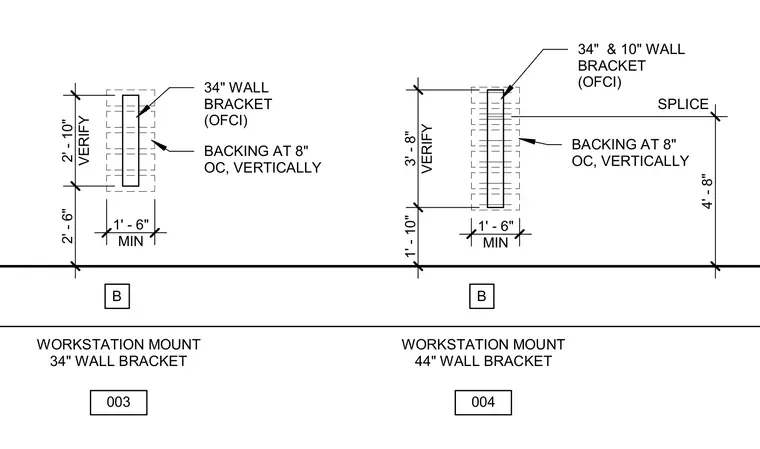

Wall-mounted workstation brackets require concealed vertical backing spaced at 8 inches on center to support owner-furnished contractor-installed equipment. The 34-inch wall bracket configuration requires a minimum 1 foot 6 inch width, a 2 foot 10 inch verified vertical bracket height, and a 2 foot 6 inch mounting height from the reference datum. The 44-inch wall bracket configuration incorporates a bracket splice, a 3 foot 8 inch verified vertical height, and a 1 foot 10 inch mounting height from the reference datum.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
