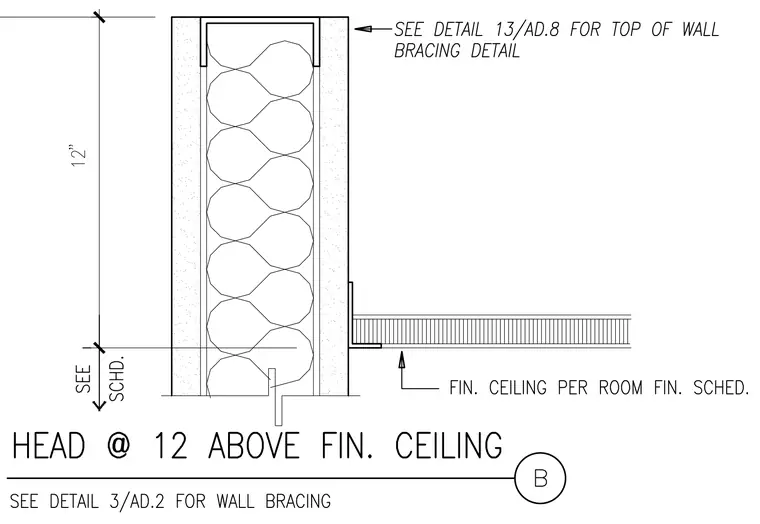

This architectural detail shows a partition wall head condition set twelve inches above the finished ceiling level. A top track or channel runner engages the wall assembly, which includes batt insulation and gypsum board layers on both faces. An angle supports the ceiling system adjacent to the partition, with finished ceiling heights referenced to the room finish schedule. Additional notes direct the builder to secondary details for top of wall bracing.
