Architectural · A-NQ3ED

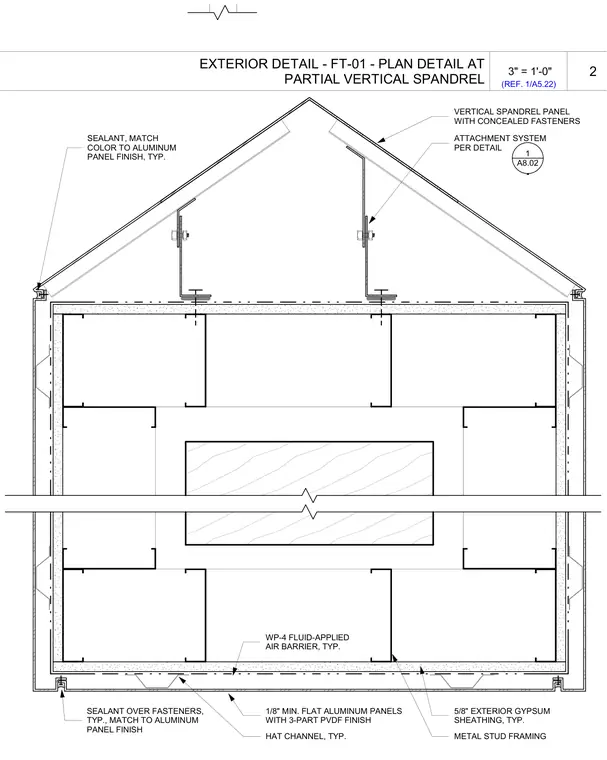

Exterior Vertical Spandrel Panel Plan Detail

Materials

Steel Cold-formed Steel Timber / Wood Aluminum Metal (misc.)Gypsum / Drywall

Elements

About this detail

An exterior vertical spandrel panel assembly mounts over metal stud framing with 5/8" exterior gypsum sheathing. A fluid-applied air barrier coats the exterior face of the sheathing. Hat channels support 1/8" minimum flat aluminum panels finished with a 3-part PVDF coating and concealed fasteners. Sealant is applied over fasteners and at joints, color-matched to the aluminum panel finish. Attachment systems are detailed per referenced sheet specifications.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
