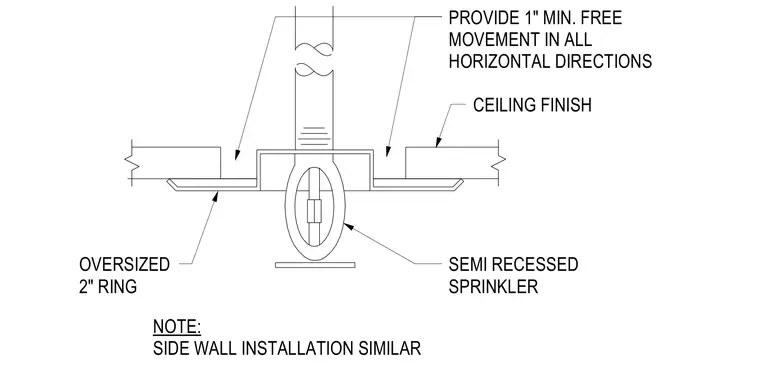

A semi-recessed fire sprinkler head penetrates the ceiling finish utilizing an oversized two-inch escutcheon ring. The assembly accommodates movement by providing one inch of minimum free movement in all horizontal directions around the drop pipe. A similar installation applies for side wall applications.
SEMI RECESSED SPRINKLER OVERSIZED 2" RING PROVIDE 1" MIN. FREE MOVEMENT IN ALL HORIZONTAL DIRECTIONS CEILING FINISH NOTE: SIDE WALL INSTALLATION SIMILAR
