Mechanical · A-NPW56

Pump - Horizontal Split Case

Materials

Concrete Masonry / CMU

Elements

Floors / Slabs Drainage Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Bolted Connection

About this detail

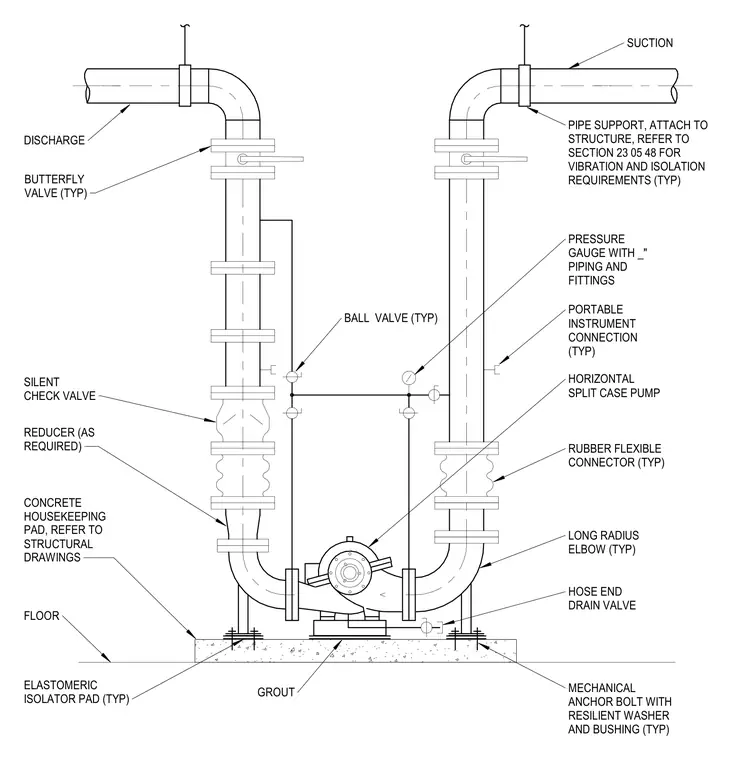

A horizontal split case pump rests on an elastomeric isolator pad over a concrete housekeeping pad, secured by mechanical anchor bolts with resilient washers and bushings with grout beneath. Suction and discharge lines feature long-radius elbows, rubber flexible connectors, reducers, and silent check valves. Butterfly valves and ball valves are installed along the piping runs for flow control. Pressure gauges, portable instrument connections, and hose end drain valves provide system monitoring and maintenance access.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
