Countertop edges feature eased or pencil edges with one-inch or built-up material as scheduled, bearing on a one-half-inch subtop. The casework box sits below the subtop with a cabinet drawer or door face fitted with a self-adhesive vinyl surface bumper beyond. Hardware pull HDW-1 occurs flush with the edge banding, leaving a one-eighth-inch clearance above the door face.

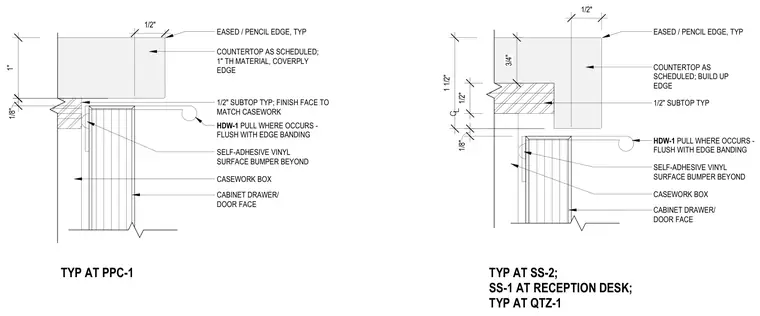

CASEWORK BOX COUNTERTOP AS SCHEDULED; BUILD UP EDGE EASED / PENCIL EDGE, TYP SELF-ADHESIVE VINYL SURFACE BUMPER BEYOND CABINET DRAWER/ DOOR FACE 1/2" SUBTOP TYP C L 1/2" HDW-1 PULL WHERE OCCURS - FLUSH WITH EDGE BANDING 1/8" 1 1/2" 1/2" CASEWORK BOX COUNTERTOP AS SCHEDULED; 1" TH MATERIAL, COVERPLY EDGE EASED / PENCIL EDGE, TYP SELF-ADHESIVE VINYL SURFACE BUMPER BEYOND CABINET DRAWER/ DOOR FACE 1/2" SUBTOP TYP; FINISH FACE TO MATCH CASEWORK HDW-1 PULL WHERE OCCURS - FLUSH WITH EDGE BANDING 1/8" 1" 1/2" TYP AT PPC-1 TYP AT SS-2; SS-1 AT RECEPTION DESK; TYP AT QTZ-1 3/4"
