An aluminum door frame supports an insulated glass unit and bears directly on a concrete slab adjacent to exterior landscaping. Continuous caulk and seal are applied at the frame joints and interface with the concrete substrate. Flashing and caulking are required for a complete weather seal.

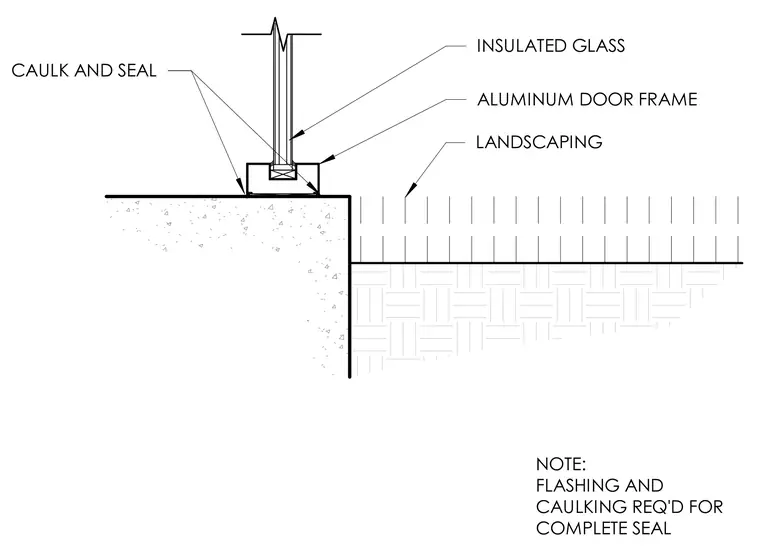

INSULATED GLASS ALUMINUM DOOR FRAME CAULK AND SEAL LANDSCAPING NOTE: FLASHING AND CAULKING REQ'D FOR COMPLETE SEAL _ AV I — I I _iiii — I — I — I — I — I m
