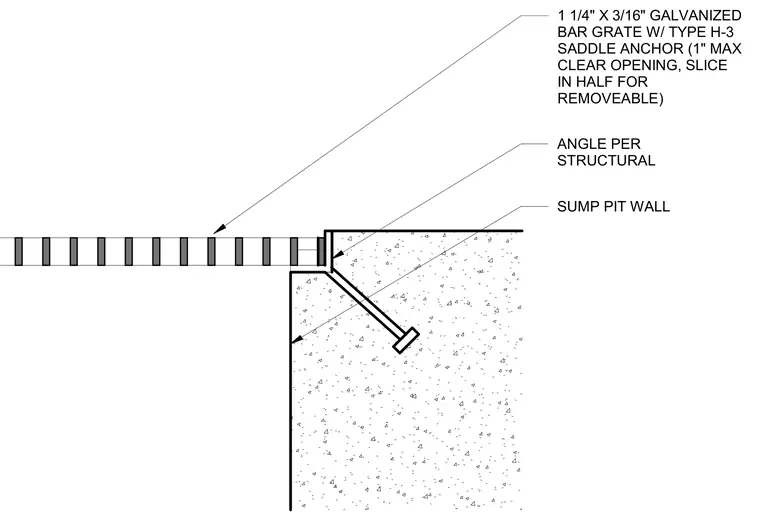

A one-and-one-quarter-inch by three-sixteenths-inch galvanized bar grate spans the elevator sump pit, secured with a type H-three saddle anchor maintaining a one-inch maximum clear opening and sliced in half to allow removability. The grate bears on a sump pit wall angle sized per structural drawings, which is anchored into the concrete sump pit wall.
1 1/4" X 3/16" GALVANIZED BAR GRATE W/ TYPE H-3 SADDLE ANCHOR (1" MAX CLEAR OPENING, SLICE IN HALF FOR REMOVEABLE) SUMP PIT WALL ANGLE PER STRUCTURAL
