Architectural · A-NPDDX

Gypsum Board Ceiling Framing

Materials

Elements

About this detail

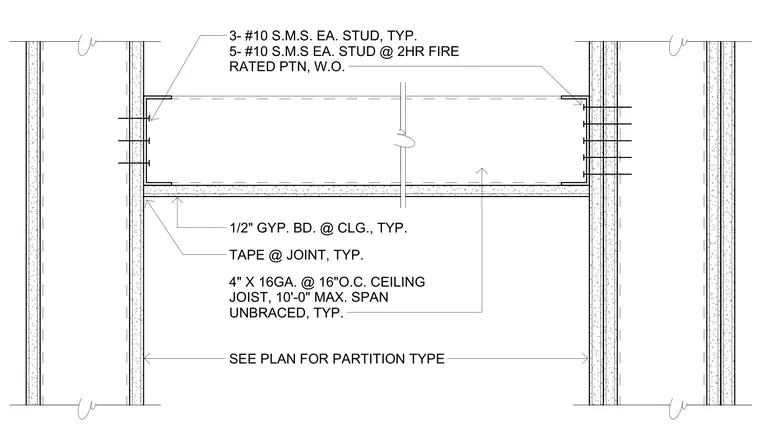

Cold-formed metal ceiling joists span between partitions with a maximum unbraced span of ten feet. Four-inch by sixteen-gauge ceiling joists are spaced at sixteen inches on center. The joists attach to the supporting studs with three number ten sheet metal screws at standard partitions, and five number ten sheet metal screws at two-hour fire-rated partitions. One-half-inch gypsum board finishes the ceiling underside, with joints taped typically.
