Architectural · A-NP9W4

Directional Sign

About this detail

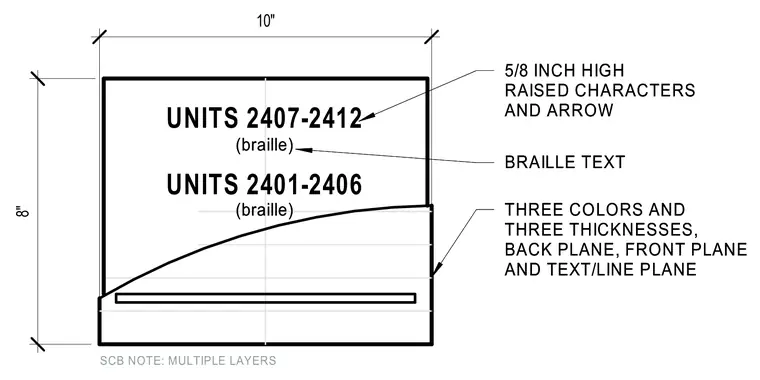

Multi-layer directional sign measuring ten inches wide by eight inches high featuring three distinct planes including a back plane, front plane, and text/line plane. The sign incorporates five-eighth-inch-high raised characters and directional arrows along with integrated braille text. Construction utilizes multiple layers across three colors and three thicknesses.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
