A continuous metal parapet coping caps the masonry wall and is secured with a continuous metal cleat on the exterior face using gasketed fasteners. A treated two-inch wood nailer sits atop the wall with a wood fiber tapered edge strip that provides a one-quarter inch per foot slope for positive drainage. Waterproofing membrane extends below the nailer and is secured to the wall. One-quarter inch by four-inch masonry screw anchors at twelve inches on center staggered anchor the assembly.

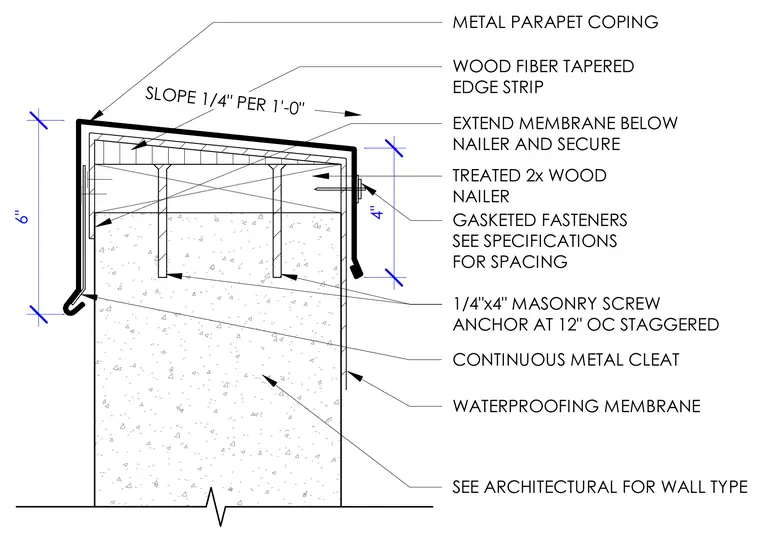

TREATED 2x WOOD NAILER WOOD FIBER TAPERED EDGE STRIP EXTEND MEMBRANE BELOW NAILER AND SECURE METAL PARAPET COPING CONTINUOUS METAL CLEAT GASKETED FASTENERS SEE SPECIFICATIONS FOR SPACING 1/4"x4" MASONRY SCREW ANCHOR AT 12" OC STAGGERED WATERPROOFING MEMBRANE SLOPE 1/4" PER 1'-0" 6" 4" SEE ARCHITECTURAL FOR WALL TYPE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
