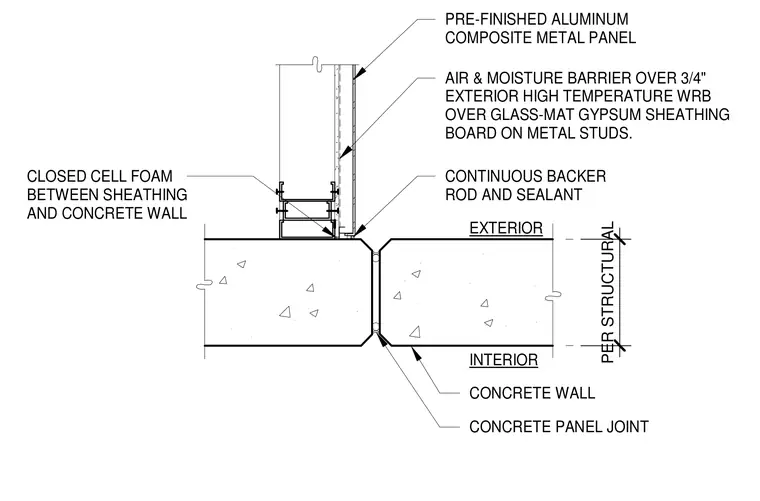

Pre-finished aluminum composite metal panels are mounted over an air and moisture barrier and high-temperature water-resistive barrier applied to glass-mat gypsum sheathing on cold-formed metal studs. The metal stud assembly meets the concrete wall with closed-cell foam installed in the cavity. A concrete panel joint features a continuous backer rod and sealant between concrete wall panels.
CONCRETE WALL EXTERIOR INTERIOR PER STRUCTURAL CONTINUOUS BACKER ROD AND SEALANT CONCRETE PANEL JOINT PRE-FINISHED ALUMINUM COMPOSITE METAL PANEL AIR & MOISTURE BARRIER OVER 3/4" EXTERIOR HIGH TEMPERATURE WRB OVER GLASS-MAT GYPSUM SHEATHING BOARD ON METAL STUDS. CLOSED CELL FOAM BETWEEN SHEATHING AND CONCRETE WALL
