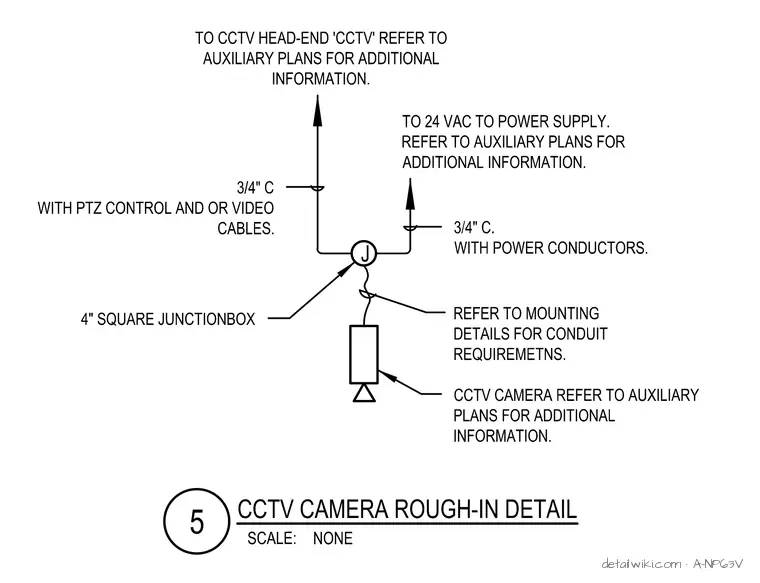

A 4-inch square junction box serves as the central termination point for closed-circuit television rough-in installations. One three-quarter inch conduit carries power conductors delivering 24 VAC from the power supply, while a separate three-quarter inch conduit routes pan-tilt-zoom control and video cables toward the CCTV head-end. Additional conduit requirements are coordinated through mounting details referenced on auxiliary plans.
