A one-half inch steel baluster connects to five-sixteenth inch plates set back one-quarter inch from the reference line. The baluster is notched over the stringer as detailed in the section notes. The connection is secured with bolts positioned seven-eighths of an inch from centerline, with a total baluster height of four inches and a one and one-quarter inch spacing dimension.

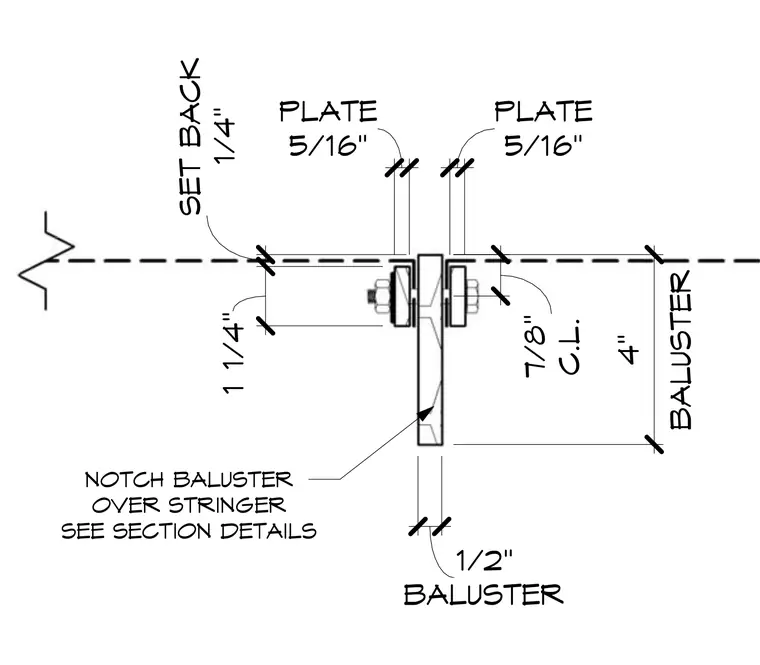

BALUSTER 4" 1 1/4" SET BACK 1/4" PLATE 5/16" PLATE 5/16" NOTCH BALUSTER OVER STRINGER SEE SECTION DETAILS BALUSTER 1/2" C.L. 7/8"
