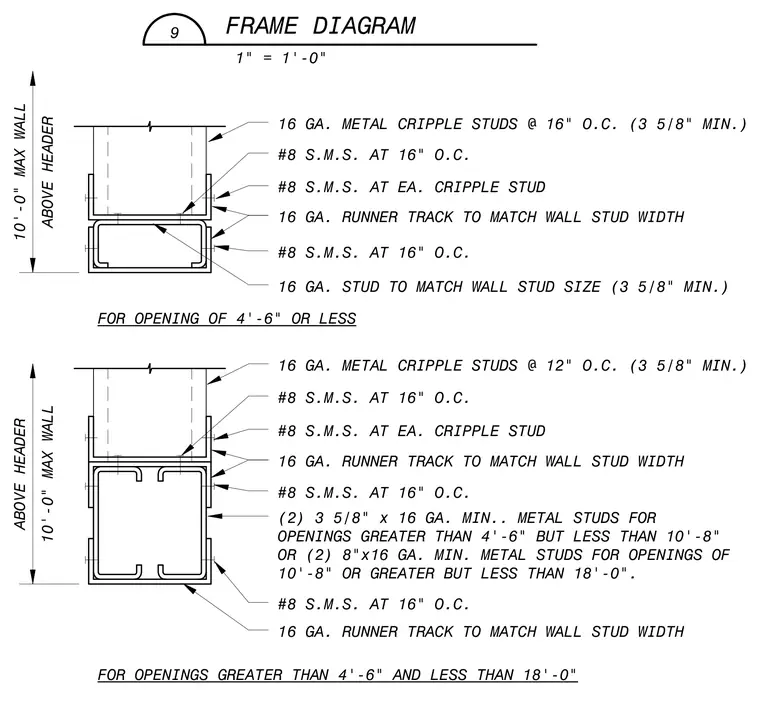

Cold-formed steel header framing configurations accommodate wall openings up to eighteen feet wide with a ten-foot maximum wall height above the header. For openings of four feet six inches or less, the assembly utilizes a single sixteen-gauge stud matching the wall stud size beneath a sixteen-gauge runner track, secured with number eight sheet metal screws at sixteen inches on center. Cripple studs spaced at sixteen inches on center bear on the runner track using number eight sheet metal screws. For wider openings between four feet six inches and eighteen feet, the header consists of two studs sized either three and five-eighths inches or eight inches depending on the span, framed with top and bottom runner tracks and number eight sheet metal screws at each cripple stud. Cripple studs for spans up to eighteen feet are spaced at twelve inches on center.
16 GA. METAL CRIPPLE STUDS @ 16" O.C. (3 5/8" MIN.) #8 S.M.S. AT 16" O.C. #8 S.M.S. AT EA. CRIPPLE STUD 16 GA. RUNNER TRACK TO MATCH WALL STUD WIDTH #8 S.M.S. AT 16" O.C. 16 GA. STUD TO MATCH WALL STUD SIZE (3 5/8" MIN.) 16 GA. METAL CRIPPLE STUDS @ 12" O.C. (3 5/8" MIN.) #8 S.M.S. AT 16" O.C. #8 S.M.S. AT EA. CRIPPLE STUD 16 GA. RUNNER TRACK TO MATCH WALL STUD WIDTH #8 S.M.S. AT 16" O.C. (2) 3 5/8" x 16 GA. MIN.. METAL STUDS FOR OPENINGS GREATER THAN 4'-6" BUT LESS THAN 10'-8" OR (2) 8"x16 GA. MIN. METAL STUDS FOR OPENINGS OF 10'-8" OR GREATER BUT LESS THAN 18'-0". #8 S.M.S. AT 16" O.C. 16 GA. RUNNER TRACK TO MATCH WALL STUD WIDTH FOR OPENING OF 4'-6" OR LESS FOR OPENINGS GREATER THAN 4'-6" AND LESS THAN 18'-0" 10'-0" MAX WALL ABOVE HEADER ABOVE HEADER 10'-0" MAX WALL 1" = 1'-0" FRAME DIAGRAM 9 . >!= l + ■ = lTTr JLJL
