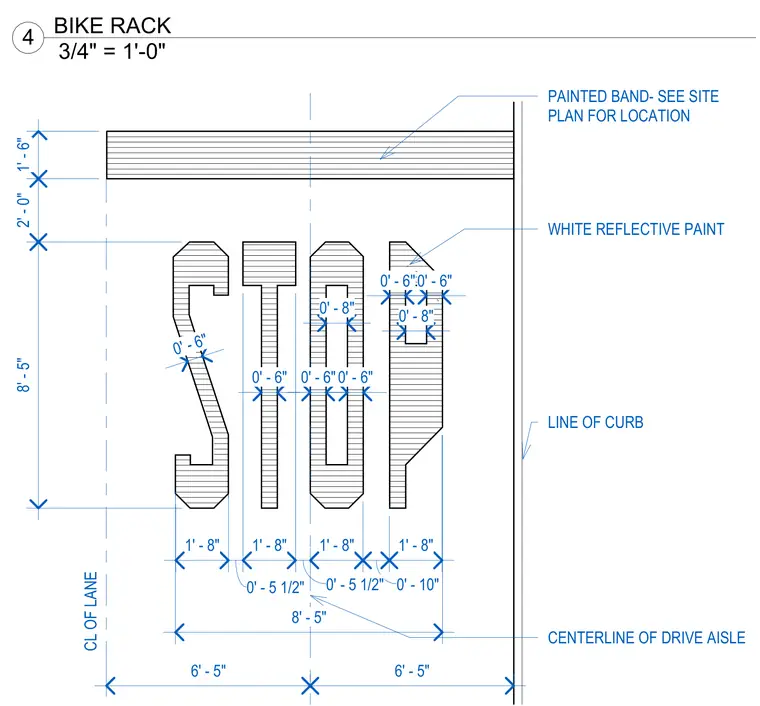

A stop sign pavement marking layout features white reflective paint applied to the driving surface with precise dimensions relative to the centerline of the lane and drive aisle. A painted band is located as specified on the site plan. The lettering and overall marking assembly are dimensioned relative to the line of the curb and traffic lane centerlines.
1' - 6" 2' - 0" 8' - 5" 6' - 5" 6' - 5" 8' - 5" 1' - 8" 0' - 5 1/2" 1' - 8" 0' - 5 1/2" 1' - 8" 0' - 10" 1' - 8" 0' - 6" 0' - 6" 0' - 8" 0' - 6"0' - 6" 0' - 6"0' - 6" 0' - 8" CL OF LANE PAINTED BAND- SEE SITE PLAN FOR LOCATION WHITE REFLECTIVE PAINT LINE OF CURB CENTERLINE OF DRIVE AISLE 3/4" = 1'-0" 4 BIKE RACK
