A fire and smoke damper is installed within a scheduled partition wall. The fire damper conforms to Underwriters Laboratories listing R5531 and the smoke damper to listing R10525. An angle frame is bolted to the fire damper sleeve at a maximum spacing of two feet on center, requiring a minimum of two bolts per side all around. A one-eighth inch per linear foot of duct size clearance is maintained around the assembly. Five-eighths inch Type X gypsum board is installed between the fire damper sleeve and the wall framing member all around.

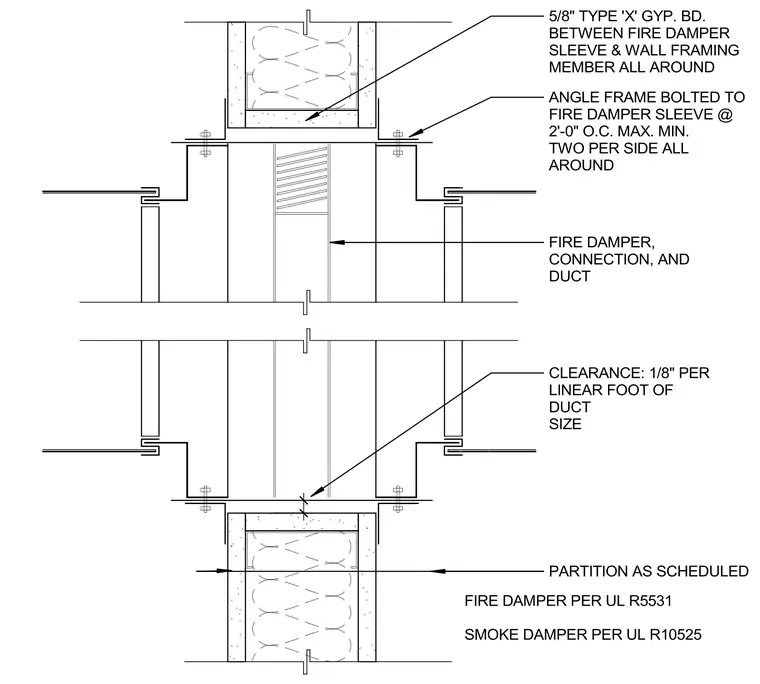

PARTITION AS SCHEDULED FIRE DAMPER PER UL R5531 SMOKE DAMPER PER UL R10525 ANGLE FRAME BOLTED TO FIRE DAMPER SLEEVE @ 2'-0" O.C. MAX. MIN. TWO PER SIDE ALL AROUND FIRE DAMPER, CONNECTION, AND DUCT CLEARANCE: 1/8" PER LINEAR FOOT OF DUCT SIZE 5/8" TYPE 'X' GYP. BD. BETWEEN FIRE DAMPER SLEEVE & WALL FRAMING MEMBER ALL AROUND .
