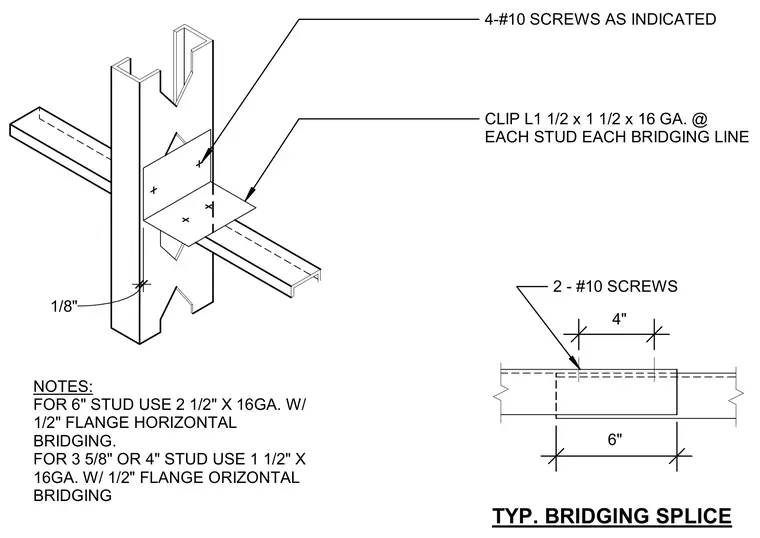

Cold-formed steel stud framing utilizes horizontal bridging secured by clip angles at each stud intersection along the bridging line. For six-inch studs, a two-and-a-half-inch by sixteen-gauge member with a half-inch flange is used, while three-and-five-eighths-inch or four-inch studs receive a one-and-a-half-inch by sixteen-gauge member with a half-inch flange. A one-and-a-half by one-and-a-half-inch by sixteen-gauge clip connects the bridging to the stud using four number-ten screws. Bridging splices overlap by six inches and are fastened with two number-ten screws.
1/8" NOTES: FOR 6" STUD USE 2 1/2" X 16GA. W/ 1/2" FLANGE HORIZONTAL BRIDGING. FOR 3 5/8" OR 4" STUD USE 1 1/2" X 16GA. W/ 1/2" FLANGE ORIZONTAL BRIDGING 4-#10 SCREWS AS INDICATED CLIP L1 1/2 x 1 1/2 x 16 GA. @ EACH STUD EACH BRIDGING LINE 2 - #10 SCREWS 4" 6" TYP. BRIDGING SPLICE
