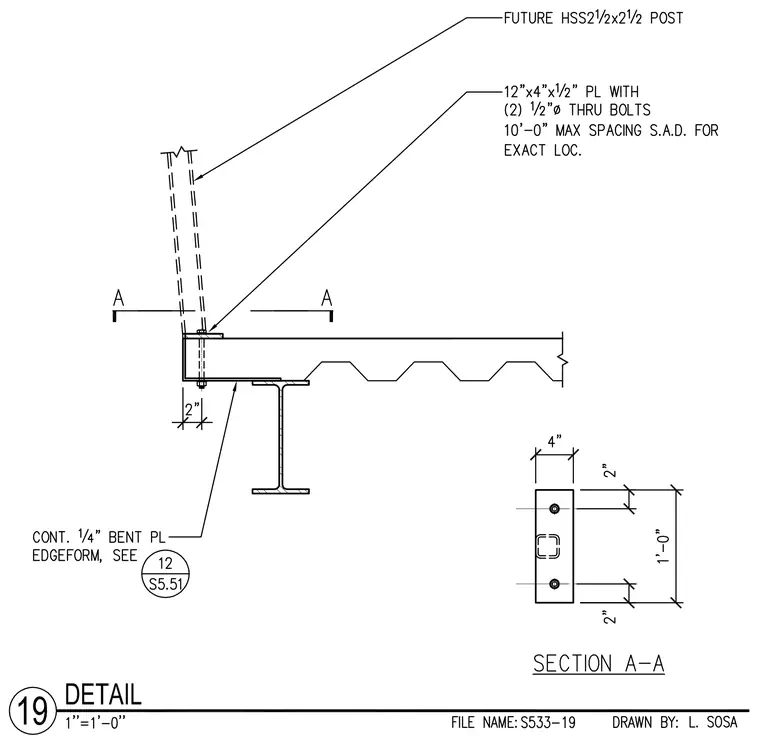

A future hollow structural section post connects to a steel floor assembly using a twelve-inch by four-inch by one-half-inch plate secured with two one-half-inch diameter thru bolts at a maximum spacing of ten feet. The connection bears on a structural steel beam supporting a metal deck, with a continuous one-quarter-inch bent plate edgeform positioned below. Section A-A shows the plate dimensions, bolt pattern, and edge clearances for the assembly.
