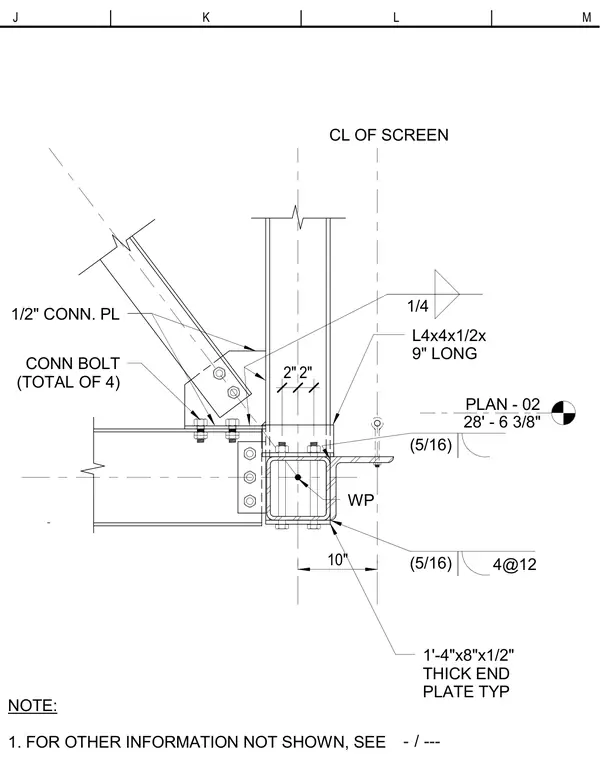

An L4x4x1/2 angle nine inches long connects to the assembly using a one-half inch thick connection plate secured with a total of four connection bolts. The framing incorporates a one-foot four-inch by eight-inch by one-half inch thick typical end plate welded with five-sixteenth inch fillets spaced at four inches on center. Additional connection plates and bolts tie the structural members together at the work point.
PLAN - 02 28' - 6 3/8" 10" 2" 2" L4x4x1/2x 9" LONG CL OF SCREEN CONN BOLT (TOTAL OF 4) 1/2" CONN. PL 1/4 1'-4"x8"x1/2" THICK END PLATE TYP WP NOTE: 1. FOR OTHER INFORMATION NOT SHOWN, SEE / - --- (5/16) 4@12 (5/16) M L K J
