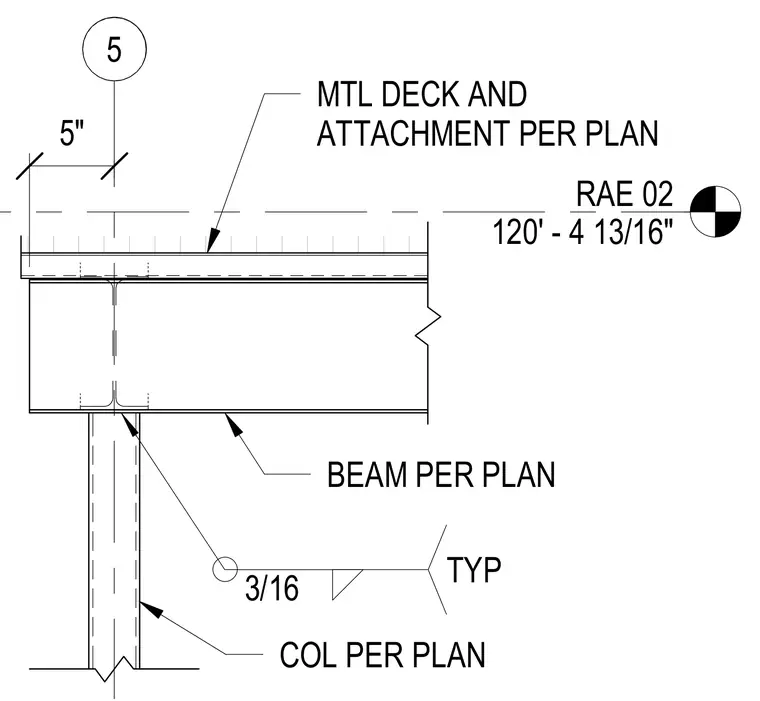

An exterior walkway roof beam is supported on a column per plan, with metal deck and attachment detailed above. A typical 3/16-inch fillet weld connects the beam to the column.
RAE 02 120' - 4 13/16" 5 5" 3/16 TYP COL PER PLAN BEAM PER PLAN MTL DECK AND ATTACHMENT PER PLAN
