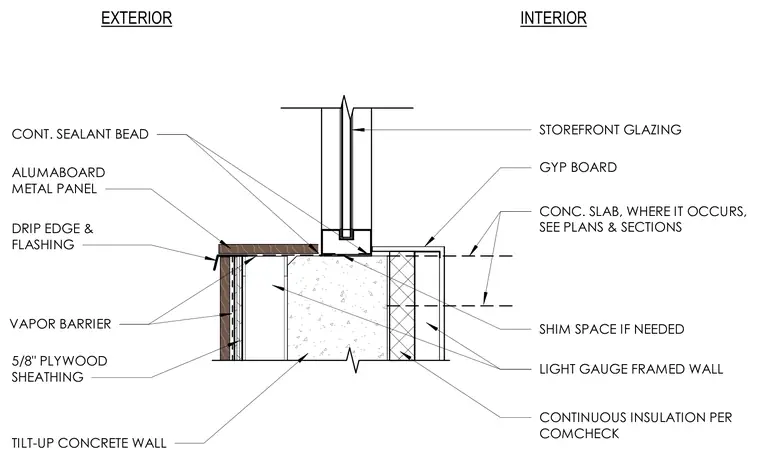

Junction between storefront glazing and a tilt-up concrete wall assembly. The exterior features an Alumaboard metal panel with a drip edge and flashing, a vapor barrier over five-eighths inch plywood sheathing, and a continuous sealant bead at the frame interface. The interior side incorporates a light gauge framed wall with continuous insulation per Comcheck and a gypsum board finish, with an optional shim space provided as needed. A concrete slab condition is noted where it occurs per plans and sections.
INTERIOR EXTERIOR SHIM SPACE IF NEEDED TILT-UP CONCRETE WALL CONT. SEALANT BEAD LIGHT GAUGE FRAMED WALL GYP BOARD CONTINUOUS INSULATION PER COMCHECK DRIP EDGE & FLASHING VAPOR BARRIER 5/8" PLYWOOD SHEATHING STOREFRONT GLAZING CONC. SLAB, WHERE IT OCCURS, SEE PLANS & SECTIONS ALUMABOARD METAL PANEL
