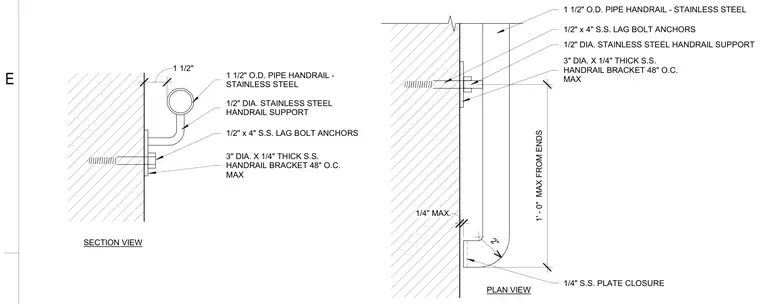

A 1 1/2 inch outer diameter stainless steel pipe handrail mounts to the wall via a 1/2 inch diameter stainless steel handrail support and a 3 inch diameter by 1/4 inch thick stainless steel handrail bracket spaced at a maximum of 48 inches on center. The bracket is secured with 1/2 inch by 4 inch stainless steel lag bolt anchors. The handrail terminates with a 1/4 inch stainless steel plate closure and returns toward the wall with a maximum 1/4 inch gap and 2 inch radius bend, positioned a maximum of 1 foot 0 inches from the ends.
1/4" MAX. 2" 1' - 0" MAX FROM ENDS 1 1/2" 1 1/2" O.D. PIPE HANDRAIL - STAINLESS STEEL 1/2" DIA. STAINLESS STEEL HANDRAIL SUPPORT 1/2" x 4" S.S. LAG BOLT ANCHORS 3" DIA. X 1/4" THICK S.S. HANDRAIL BRACKET 48" O.C. MAX 1 1/2" O.D. PIPE HANDRAIL - STAINLESS STEEL 1/2" DIA. STAINLESS STEEL HANDRAIL SUPPORT 1/2" x 4" S.S. LAG BOLT ANCHORS 3" DIA. X 1/4" THICK S.S. HANDRAIL BRACKET 48" O.C. MAX 1/4" S.S. PLATE CLOSURE SECTION VIEW PLAN VIEW E
