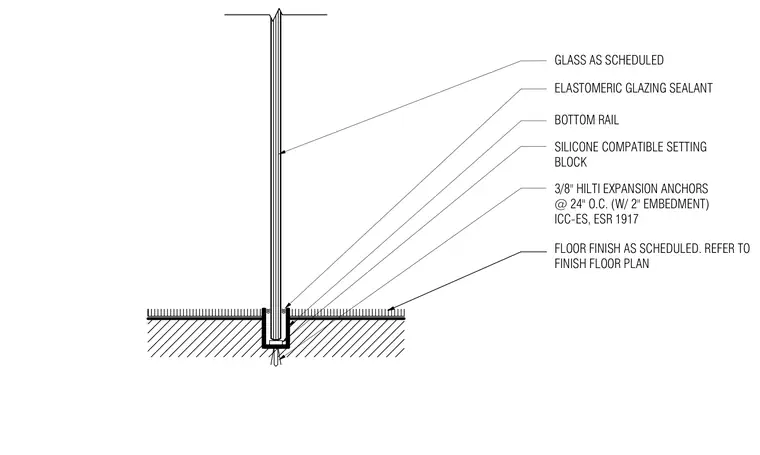

A flush sill track assembly for glass glazing is integrated into the floor construction. The glass pane is supported by a silicone compatible setting block inside the bottom rail, sealed with elastomeric glazing sealant. The sill track is anchored to the structural slab using three-eighths-inch Hilti expansion anchors spaced at twenty-four inches on center with a two-inch embedment, per ICC-ES ESR 1917. The adjacent floor finish is installed flush to the track assembly as scheduled.
FLOOR FINISH AS SCHEDULED. REFER TO FINISH FLOOR PLAN BOTTOM RAIL ELASTOMERIC GLAZING SEALANT GLASS AS SCHEDULED 3/8" HILTI EXPANSION ANCHORS @ 24" O.C. (W/ 2" EMBEDMENT) ICC-ES, ESR 1917 SILICONE COMPATIBLE SETTING BLOCK
