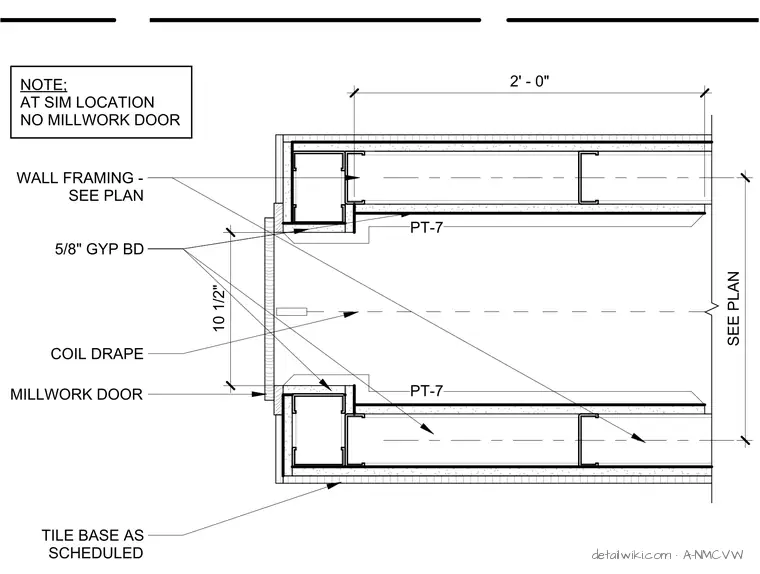

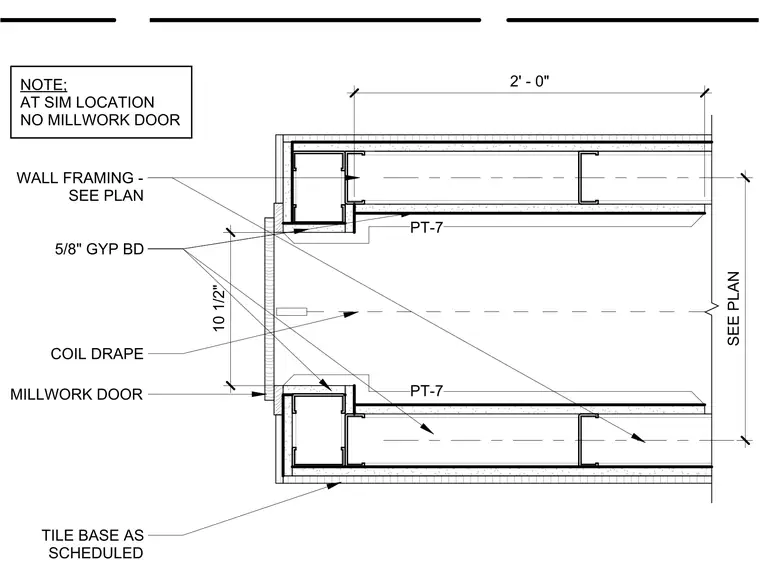

A wall opening framed with metal studs and finished with five-eighths inch gypsum board. The opening width is dimensioned at ten and one-half inches, with the surrounding wall framing sized per plan. A coil drape is positioned within the opening, and the base condition is finished with a tile base as scheduled. The assembly is noted for similar locations where a millwork door is omitted.
