A control joint is integrated into a concrete substrate topped with a seamless epoxy flooring system. A waterproof membrane spans the joint width, reinforced by a three-and-three-quarter-inch wide fiberglass tape embedded directly into the membrane. A backer rod fills the joint gap below the membrane assembly. The installer must provide a recommended seaming diagram.

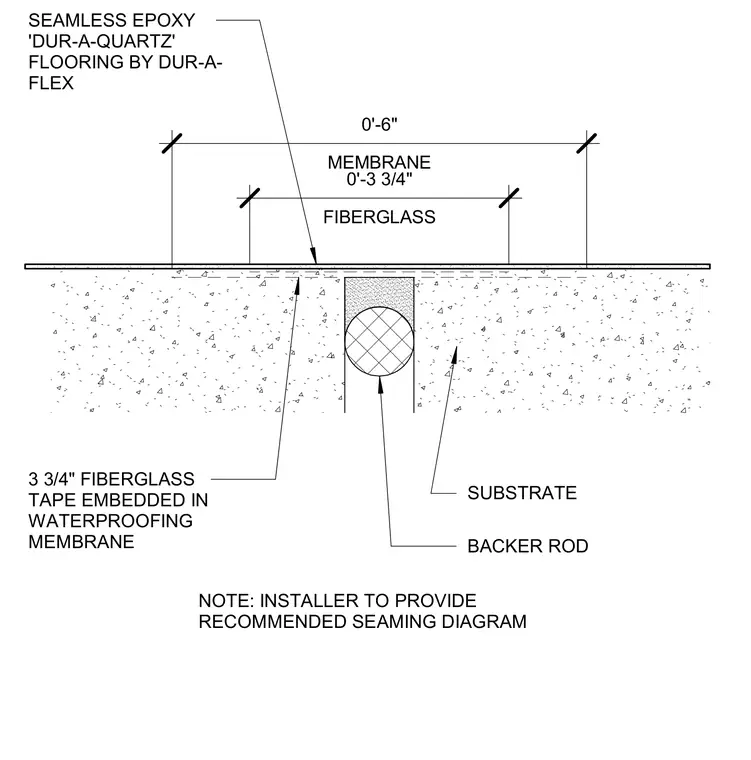

FIBERGLASS 0'-3 3/4" MEMBRANE 0'-6" SEAMLESS EPOXY 'DUR-A-QUARTZ' FLOORING BY DUR-A- FLEX 3 3/4" FIBERGLASS TAPE EMBEDDED IN WATERPROOFING MEMBRANE SUBSTRATE BACKER ROD NOTE: INSTALLER TO PROVIDE RECOMMENDED SEAMING DIAGRAM
