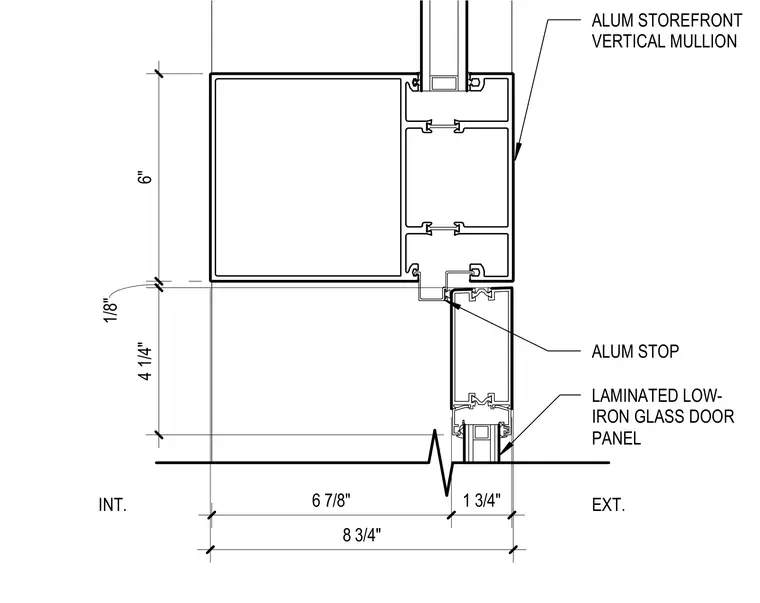

An extruded aluminum storefront vertical mullion connects to a laminated low-iron glass door panel secured by an aluminum stop. Dimensions indicate a 6-inch mullion depth adjacent to a 4-1/4-inch door panel profile, maintaining a 1/8-inch clearance joint between components. The assembly establishes the frame-to-door relationship for exterior storefront openings.
LAMINATED LOW- IRON GLASS DOOR PANEL ALUM STOREFRONT VERTICAL MULLION ALUM STOP 6" 1/8" 4 1/4" 6 7/8" 1 3/4" 8 3/4" EXT. INT.
