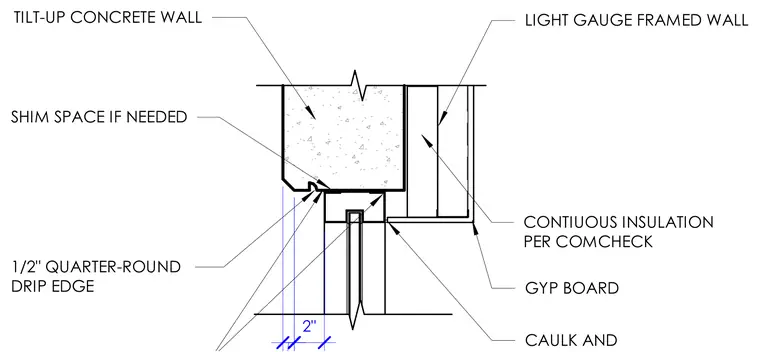

A light gauge framed wall terminates against a tilt-up concrete wall with an optional shim space provided as needed. Continuous insulation sized per Comcheck is installed behind the cold-formed steel framing. Gypsum board finishes the interior face of the partition. Joint sealant is applied at the junction, and a half-inch quarter-round drip edge is incorporated into the concrete profile.
SHIM SPACE IF NEEDED TILT-UP CONCRETE WALL CAULK AND LIGHT GAUGE FRAMED WALL GYP BOARD CONTIUOUS INSULATION PER COMCHECK 1/2" QUARTER-ROUND DRIP EDGE 2"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
