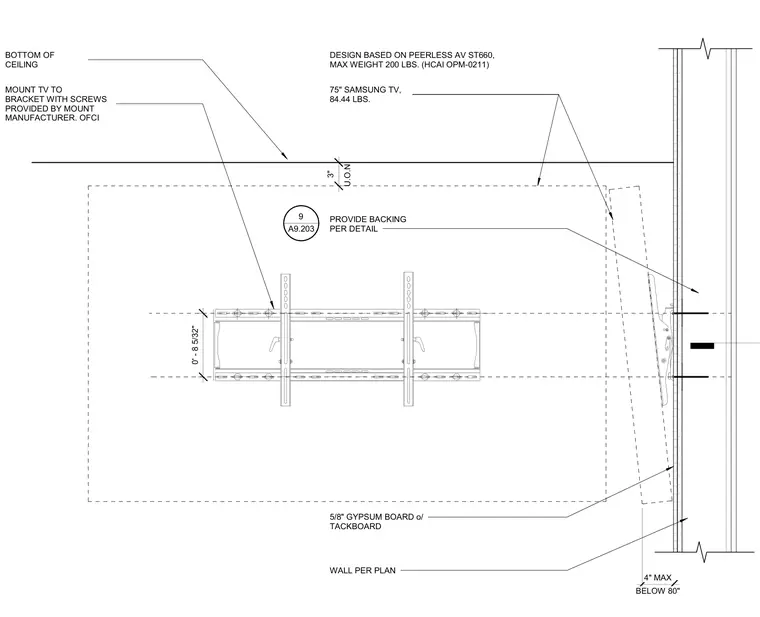

A wall-mounted television bracket is secured to a gypsum board wall over tackboard per plan. The assembly accommodates a seventy-five-inch Samsung television weighing 84.44 pounds, mounted using the manufacturer-provided screws. The installation design is based on a Peerless AV ST660 mount with a maximum weight capacity of 200 pounds and complies with HCAI OPM-0211. Structural backing is provided per detail at a height of 0 feet 8 5/32 inches u.o.n. below the bottom of the ceiling.
MOUNT TV TO BRACKET WITH SCREWS PROVIDED BY MOUNT MANUFACTURER. OFCI BOTTOM OF CEILING DESIGN BASED ON PEERLESS AV ST660, MAX WEIGHT 200 LBS. (HCAI OPM-0211) 75" SAMSUNG TV, 84.44 LBS. 5/8" GYPSUM BOARD o/ TACKBOARD WALL PER PLAN 0' - 8 5/32" U.O.N. 3" PROVIDE BACKING PER DETAIL BELOW 80" 4" MAX 9 A9.203
