Architectural · A-NKEQB

Routed Column Cover and Recessed Steel Corner Guard Dado Joint

Materials

Elements

About this detail

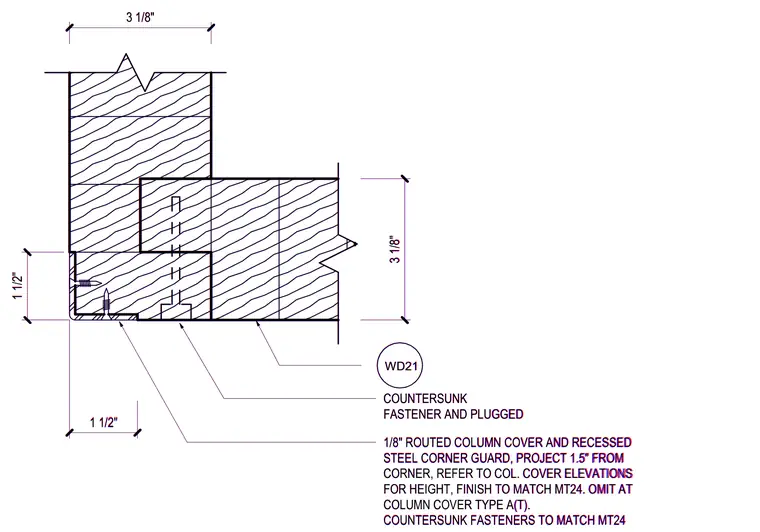

A dado corner joint connects wood column covers with a recessed steel corner guard projecting one and a half inches from the corner. The assembly incorporates a one-eighth-inch routed column cover secured with countersunk fasteners and plugged wood grain joints. A steel corner guard is fastened into the wood framing using countersunk fasteners matching finish MT24. The corner guard is omitted at column cover type A(T) per elevation schedules. Dimensions indicate three-and-one-eighth-inch thicknesses and one-and-one-half-inch leg clearances.
