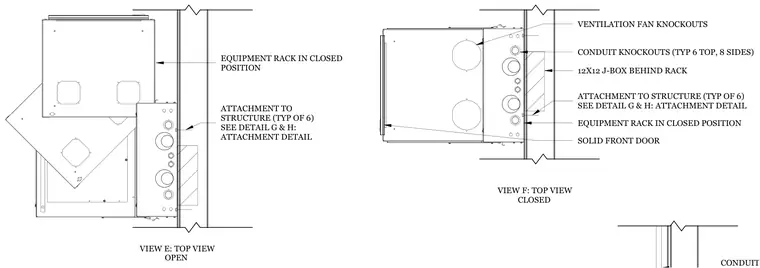

An equipment rack is shown in both open and closed positions with a solid front door and structural attachment points typical of six. Ventilation fan knockouts and conduit knockouts are provided with six on top and eight on the sides. A twelve-by-twelve junction box is positioned behind the rack. Attachment to structure is detailed further via referenced detail G and H.
VIEW F: TOP VIEW CLOSED VIEW E: TOP VIEW OPEN EQUIPMENT RACK IN CLOSED POSITION ATTACHMENT TO STRUCTURE (TYP OF 6) SEE DETAIL G & H: ATTACHMENT DETAIL VENTILATION FAN KNOCKOUTS CONDUIT KNOCKOUTS (TYP 6 TOP, 8 SIDES) 12X12 J-BOX BEHIND RACK EQUIPMENT RACK IN CLOSED POSITION ATTACHMENT TO STRUCTURE (TYP OF 6) SEE DETAIL G & H: ATTACHMENT DETAIL SOLID FRONT DOOR
