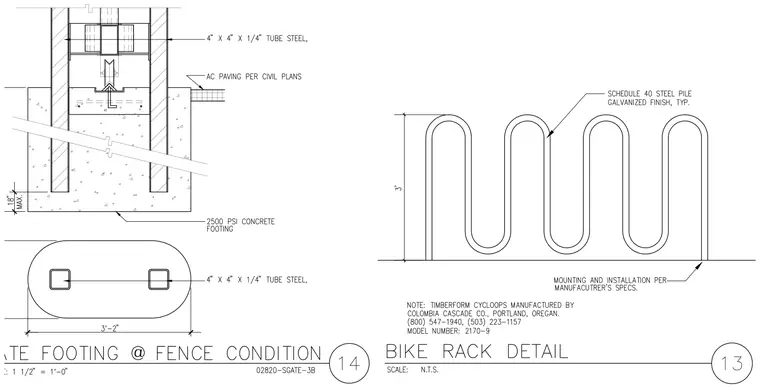

A sliding gate guide assembly features dual 4" x 4" x 1/4" hollow structural section tube steel posts extending down into a continuous 2500 PSI concrete footing, with an overhead roller guide and an in-slab guide track flanked by asphaltic concrete paving. A separate site detail shows a continuous schedule 40 steel pipe bike rack with a galvanized finish, standing 3 feet tall with mounting and installation per manufacturer's specifications.
