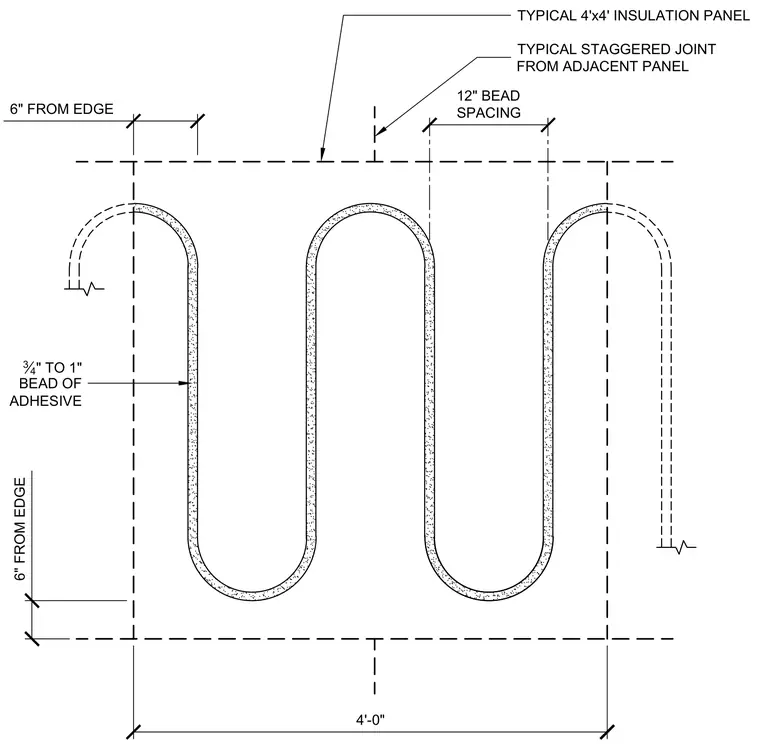

Insulation panels measuring four feet by four feet are adhered using a serpentine adhesive pattern with beads measuring three-quarters to one inch wide. The adhesive pattern maintains a six-inch clearance from panel edges and a twelve-inch bead spacing. Adjacent panels are installed with staggered joints.
6" FROM EDGE 12" BEAD SPACING 3 4 " TO 1" BEAD OF ADHESIVE 6" FROM EDGE TYPICAL 4'x4' INSULATION PANEL TYPICAL STAGGERED JOINT FROM ADJACENT PANEL 4'-0"
