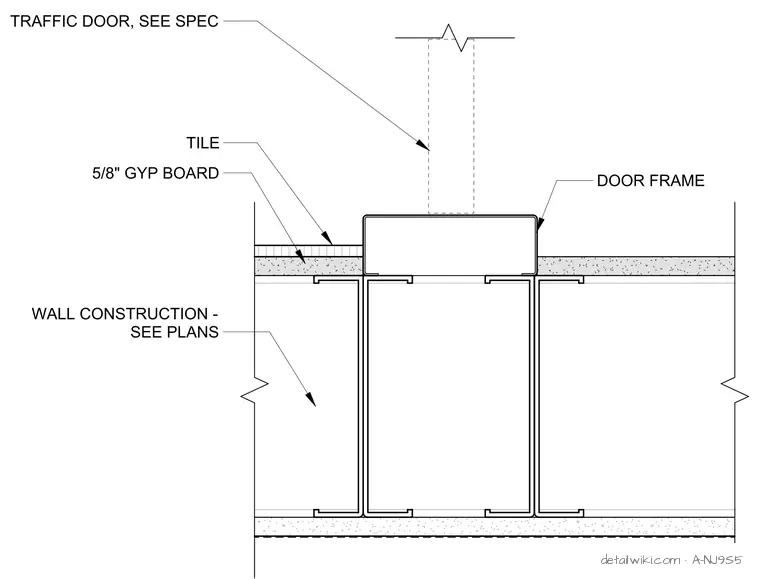

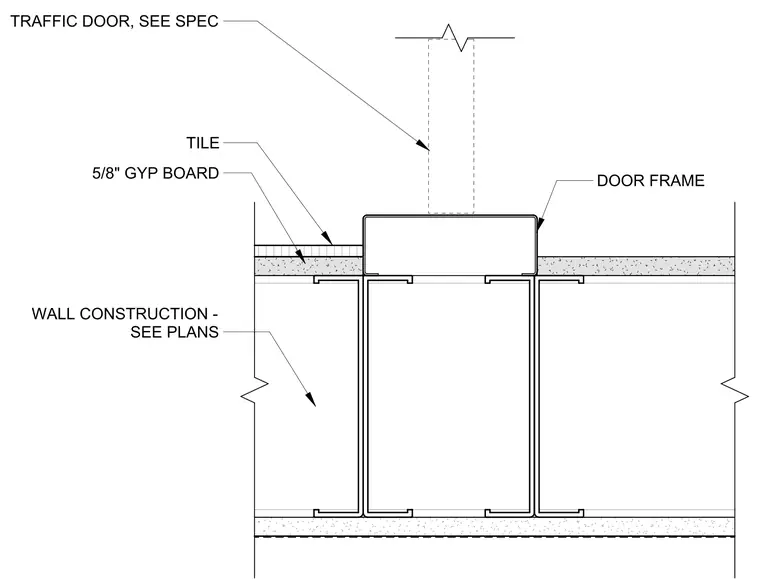

Jamb condition for a traffic door installed within a stud-framed partition wall. A metal door frame is centered on the wall, flanked by five-eighths inch gypsum board on both sides. A layer of tile is applied over the gypsum board on one face of the wall. Wall construction, including stud sizing and spacing, is referenced to the project floor plans; the traffic door is specified in the project manual.
