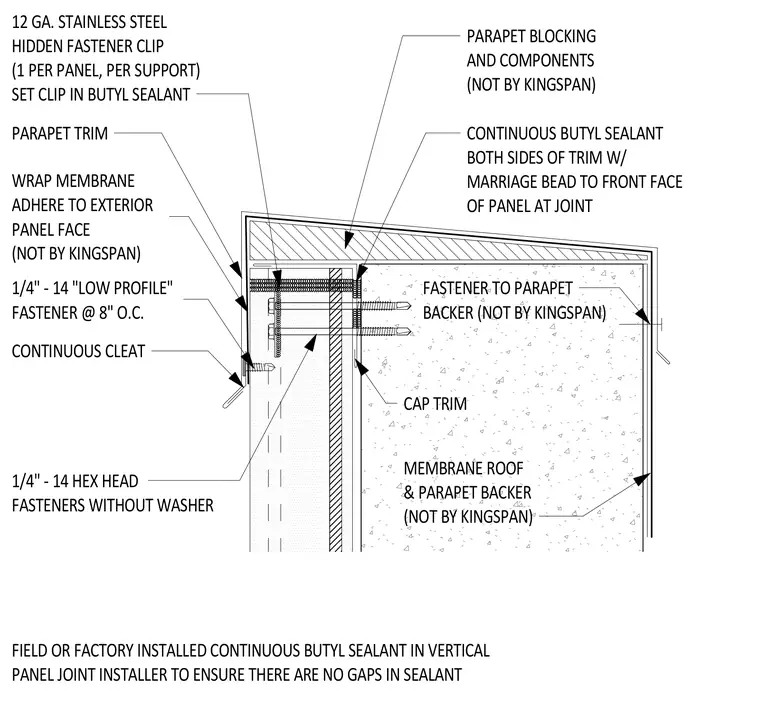

This parapet cap detail shows metal wall panels terminating at a sloped parapet with continuous trim and blocking provided by others. The assembly utilizes a twelve-gauge stainless steel hidden fastener clip set in butyl sealant at one per panel per support, fastened to the parapet backer using quarter-inch by fourteen low-profile fasteners spaced at eight inches on center. A continuous cleat secures the lower edge of the exterior metal panel using quarter-inch by fourteen hex head fasteners without washers. Continuous butyl sealant is applied to both sides of the trim with a marriage bead to the front face of the panel at the joint, and the membrane is wrapped and adhered to the exterior panel face.
WRAP MEMBRANE ADHERE TO EXTERIOR PANEL FACE (NOT BY KINGSPAN) PARAPET BLOCKING AND COMPONENTS (NOT BY KINGSPAN) MEMBRANE ROOF & PARAPET BACKER (NOT BY KINGSPAN) FASTENER TO PARAPET BACKER (NOT BY KINGSPAN) PARAPET TRIM 1/4" - 14 "LOW PROFILE" FASTENER @ 8" O.C. 12 GA. STAINLESS STEEL HIDDEN FASTENER CLIP (1 PER PANEL, PER SUPPORT) SET CLIP IN BUTYL SEALANT 1/4" - 14 HEX HEAD FASTENERS WITHOUT WASHER FIELD OR FACTORY INSTALLED CONTINUOUS BUTYL SEALANT IN VERTICAL PANEL JOINT INSTALLER TO ENSURE THERE ARE NO GAPS IN SEALANT CONTINUOUS BUTYL SEALANT BOTH SIDES OF TRIM W/ MARRIAGE BEAD TO FRONT FACE OF PANEL AT JOINT CAP TRIM CONTINUOUS CLEAT
