Bar grate treads with diamond plate nosing and risers are supported by steel stringers. A two-inch wide color-contrasting non-slip strip is applied to all treads and the upper approach. Standard stair geometry consists of an eleven-inch typical tread dimension with specified riser dimensions.

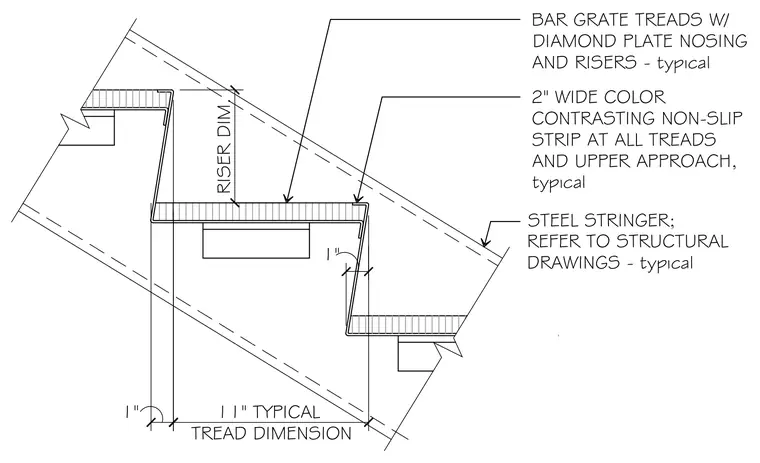

BAR GRATE TREADS W/ DIAMOND PLATE NOSING AND RISERS - typical 2" WIDE COLOR CONTRASTING NON-SLIP STRIP AT ALL TREADS AND UPPER APPROACH, typical RISER DIM. 11" TYPICAL TREAD DIMENSION 1" 1" STEEL STRINGER; REFER TO STRUCTURAL DRAWINGS - typical -4% / L -v
