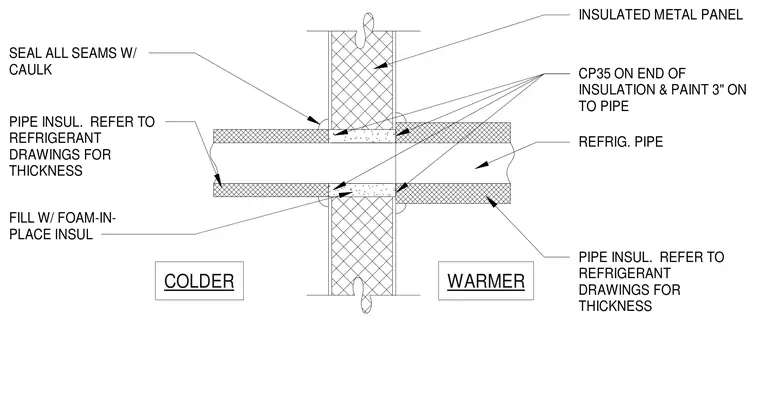

A refrigerant pipe passes through an opening in an insulated metal panel dividing colder and warmer zones. The annular space around the pipe is filled with foam-in-place insulation, and all seams are sealed with caulk. The ends of the pipe insulation are treated with CP35 and painted three inches onto the pipe.
SEAL ALL SEAMS W/ CAULK FILL W/ FOAM-IN- PLACE INSUL PIPE INSUL. REFER TO REFRIGERANT DRAWINGS FOR THICKNESS CP35 ON END OF INSULATION & PAINT 3" ON TO PIPE PIPE INSUL. REFER TO REFRIGERANT DRAWINGS FOR THICKNESS REFRIG. PIPE WARMER COLDER INSULATED METAL PANEL
