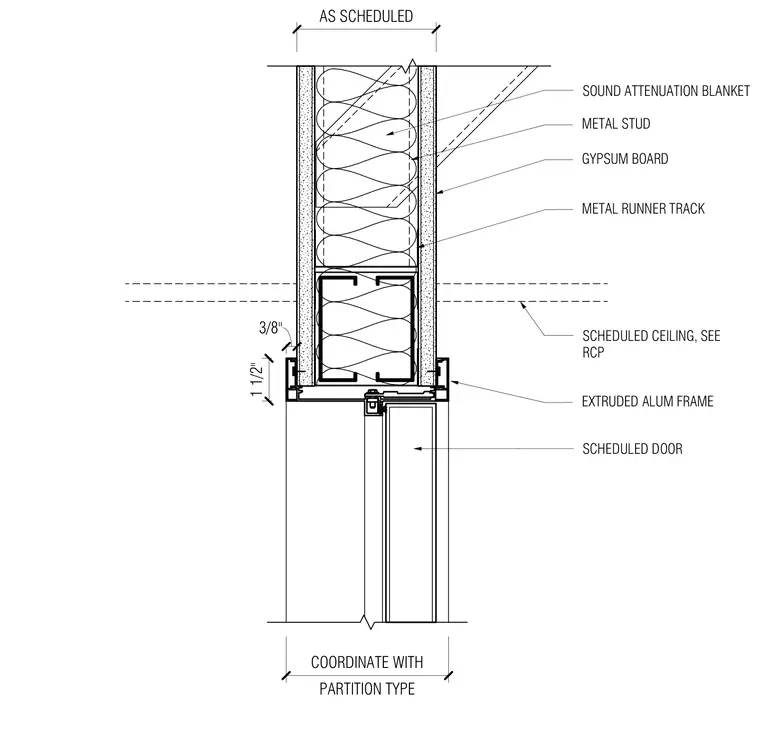

An extruded aluminum frame supports the scheduled door head below a metal runner track and metal studs. Gypsum board finishes both sides of the partition framing, leaving a 3/8-inch clearance offset at the frame intersection. Sound attenuation blanket fills the wall cavity for acoustic performance. The scheduled ceiling height coordinates with the reflected ceiling plan.
AS SCHEDULED 1 1/2" 3/8" GYPSUM BOARD METAL STUD METAL RUNNER TRACK SCHEDULED CEILING, SEE RCP EXTRUDED ALUM FRAME PARTITION TYPE COORDINATE WITH SOUND ATTENUATION BLANKET SCHEDULED DOOR
