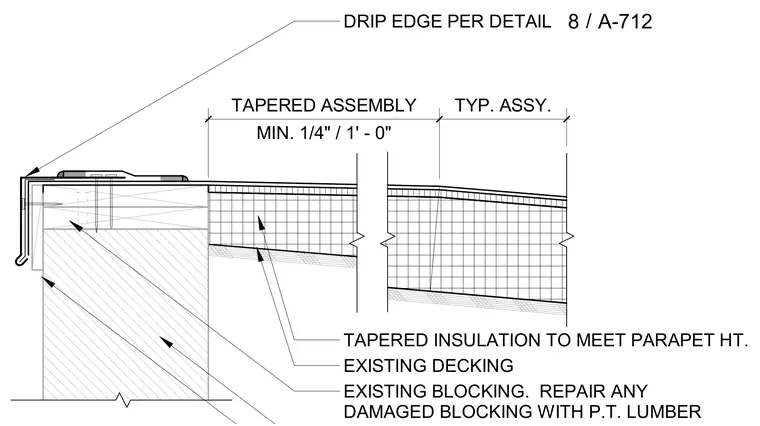

A low wood-framed parapet assembly incorporates tapered insulation sloping over existing decking. A drip edge connects at the top edge of the parapet. Existing wood blocking sits atop the wall, with notes requiring any damaged blocking to be repaired using pressure-treated lumber. Tapered insulation is installed to meet the parapet height at a minimum slope of one-quarter inch per foot.
MIN. 1/4" / 1' - 0" TAPERED ASSEMBLY TYP. ASSY. DRIP EDGE PER DETAIL EXISTING BLOCKING. REPAIR ANY DAMAGED BLOCKING WITH P.T. LUMBER EXISTING DECKING TAPERED INSULATION TO MEET PARAPET HT. / 8 A-712
