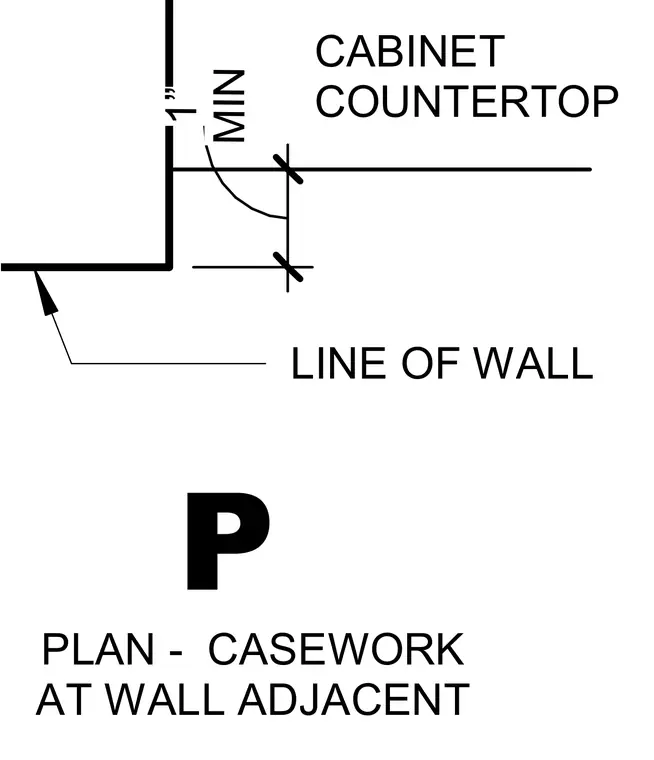

A cabinet countertop meets an adjacent wall with a minimum one-inch clearance distance indicated. The line of the wall runs perpendicular to the cabinet edge.
