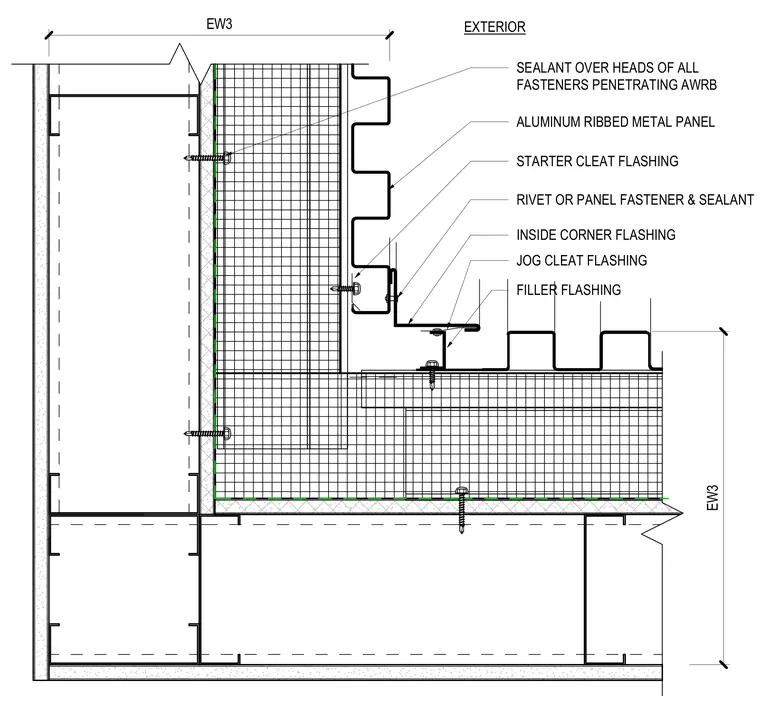

An aluminum ribbed metal panel inside corner assembly features starter cleat flashing, inside corner flashing, jog cleat flashing, and filler flashing tying the panel layout together. Rivets or panel fasteners secure the components, with sealant applied over the heads of all fasteners penetrating the air and water-resisting barrier. The arrangement accommodates the profile of the EW3 ribbed metal panel system at interior building corners.
SEALANT OVER HEADS OF ALL FASTENERS PENETRATING AWRB EW3 ALUMINUM RIBBED METAL PANEL STARTER CLEAT FLASHING EXTERIOR RIVET OR PANEL FASTENER & SEALANT INSIDE CORNER FLASHING JOG CLEAT FLASHING FILLER FLASHING EW3
