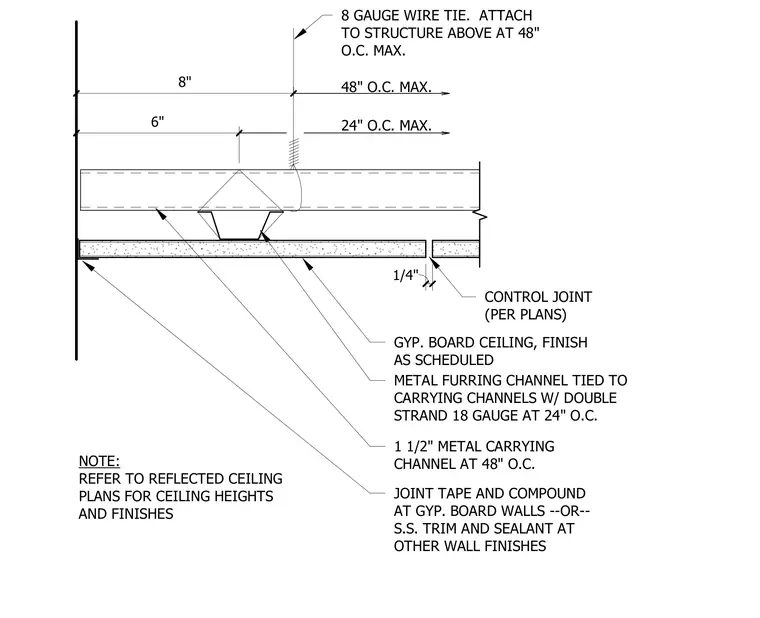

An eight-gauge wire tie attaches to the structure above at a maximum spacing of forty-eight inches on center and ties to a one-and-one-half-inch metal carrying channel spaced at forty-eight inches on center. Metal furring channels tie to the carrying channels with double-strand eighteen-gauge wire at twenty-four inches on center and support the gypsum board ceiling. A control joint is provided per plans with a quarter-inch gap in the gypsum board finish. The ceiling perimeter receives joint tape and compound at gypsum board walls or stainless steel trim and sealant at other wall finishes.
1/4" 8" 8 GAUGE WIRE TIE. ATTACH TO STRUCTURE ABOVE AT 48" O.C. MAX. CONTROL JOINT (PER PLANS) GYP. BOARD CEILING, FINISH AS SCHEDULED METAL FURRING CHANNEL TIED TO CARRYING CHANNELS W/ DOUBLE STRAND 18 GAUGE AT 24" O.C. 1 1/2" METAL CARRYING CHANNEL AT 48" O.C. JOINT TAPE AND COMPOUND AT GYP. BOARD WALLS --OR-- S.S. TRIM AND SEALANT AT OTHER WALL FINISHES NOTE: REFER TO REFLECTED CEILING PLANS FOR CEILING HEIGHTS AND FINISHES 6" 48" O.C. MAX. 24" O.C. MAX.
