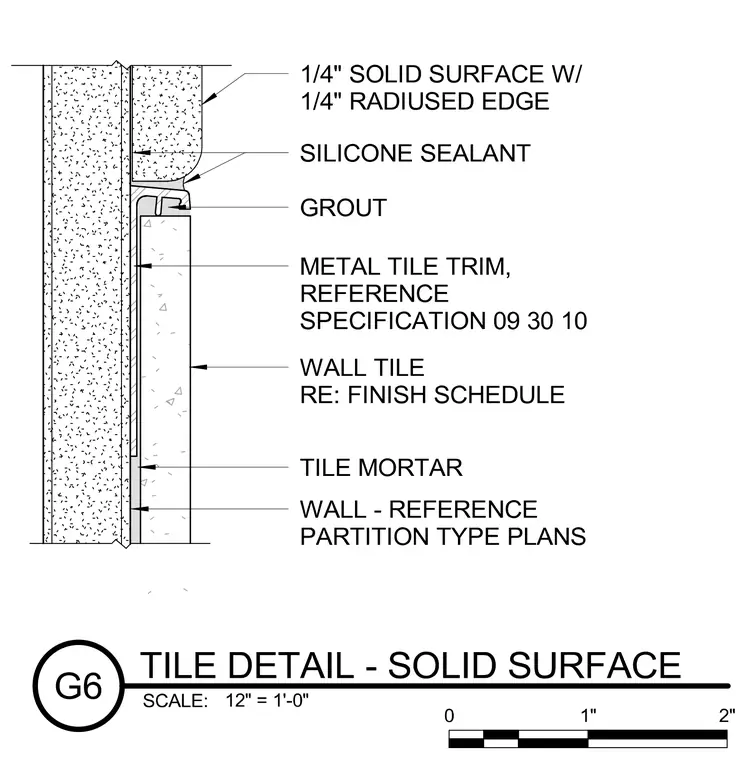

A one-quarter-inch solid surface piece with a radiused edge sits above a wall tile assembly, separated by silicone sealant and grout. The wall tile is set in tile mortar over a partition wall, featuring a metal tile trim referenced in specification 09 30 10. The finish schedule dictates the specific wall tile selection.
