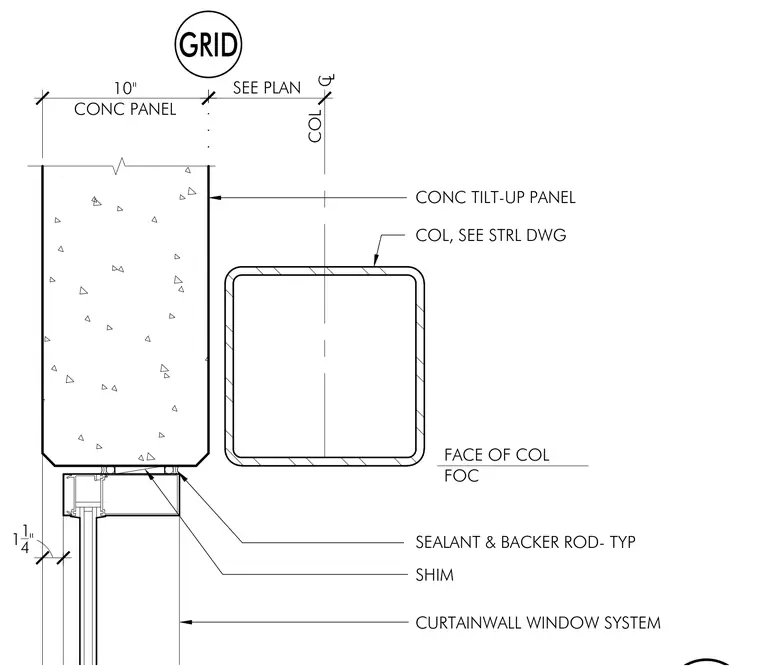

A curtainwall window system interfaces with a ten-inch concrete tilt-up panel adjacent to a structural column. Shims and a typical sealant joint with backer rod bridge the gap between the window frame and the concrete panel. The column alignment is referenced to the structural drawings at the face of the column.
SEE PLAN GRID COL FACE OF COL FOC 11 4" 10" CONC PANEL SEALANT & BACKER ROD- TYP CURTAINWALL WINDOW SYSTEM COL, SEE STRL DWG CL CONC TILT-UP PANEL SHIM
