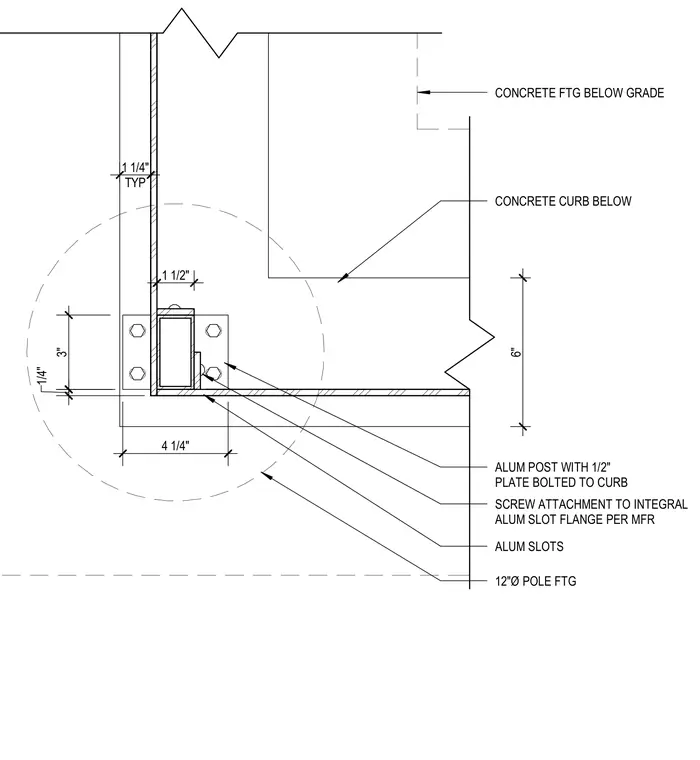

An aluminum post with a welded half-inch base plate is bolted to a concrete curb below. The post assembly sits adjacent to a concrete footing set below grade. Screw attachments secure the assembly to the integral aluminum slot flange per manufacturer specifications.
1/4" 3" 6" SCREW ATTACHMENT TO INTEGRAL ALUM SLOT FLANGE PER MFR CONCRETE CURB BELOW ALUM POST WITH 1/2" PLATE BOLTED TO CURB ALUM SLOTS TYP 1 1/4" 4 1/4" 1 1/2" 12"Ø POLE FTG CONCRETE FTG BELOW GRADE
